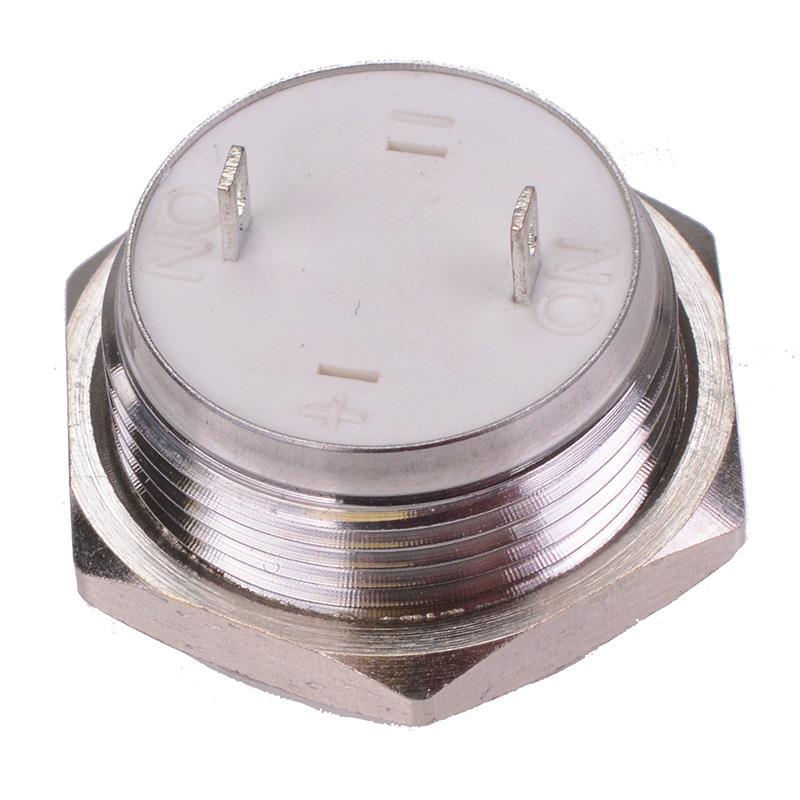

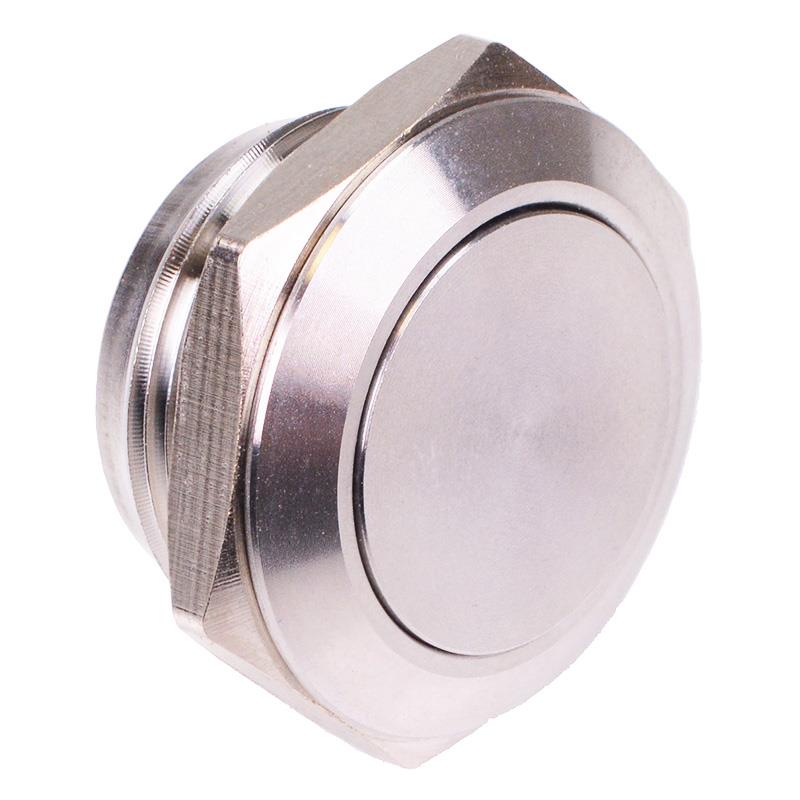

Vandal Resistant Off-(On) Momentary 19mm Short Push Button Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	0.05A 24VDC
Current Rating	0.05A
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP67
Operating Temperature	-20°C to +55°C
Panel Cut Out	19mm
Panel Thickness	1.0-3.0mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	24VDC

Description

Short body vandal resistant momentary push button switch manfuactured from stainless steel, featuring NO / NC contacts. The switch requires a 19mm panel cut-out making it suitable for applications with limited space behind the panel.

Momentary switch action

SPST-NO contacts

Panel cut-out: 19mm

Maximum panel thickness: 3mm

Rating: 50mA 24VDC

Protection rating: IP67

Solder terminals

Dimensions: 14.1 x 22mm (Length x Diameter)
