White 22mm Momentary Push Button Switch Control Station 2NO 1NC IP65

White 22mm Momentary Push Button Switch Control Station 2NO 1NC IP65
White 22mm Momentary Push Button Switch Control Station 2NO 1NC IP65
White 22mm Momentary Push Button Switch Control Station 2NO 1NC IP65
White 22mm Momentary Push Button Switch Control Station 2NO 1NC IP65
White 22mm Momentary Push Button Switch Control Station 2NO 1NC IP65
from
$33.46
Ex Tax: $33.46
5 or more $29.78
10 or more $27.77
25 or more $26.10
50 or more $24.76
  • Stock: In Stock
  • Model: SCJ011625
  • SKU: SCJ011625
Products Sold: 0
Product Views: 20
  • Specifications
Attributes List
MOQ1
  • Description

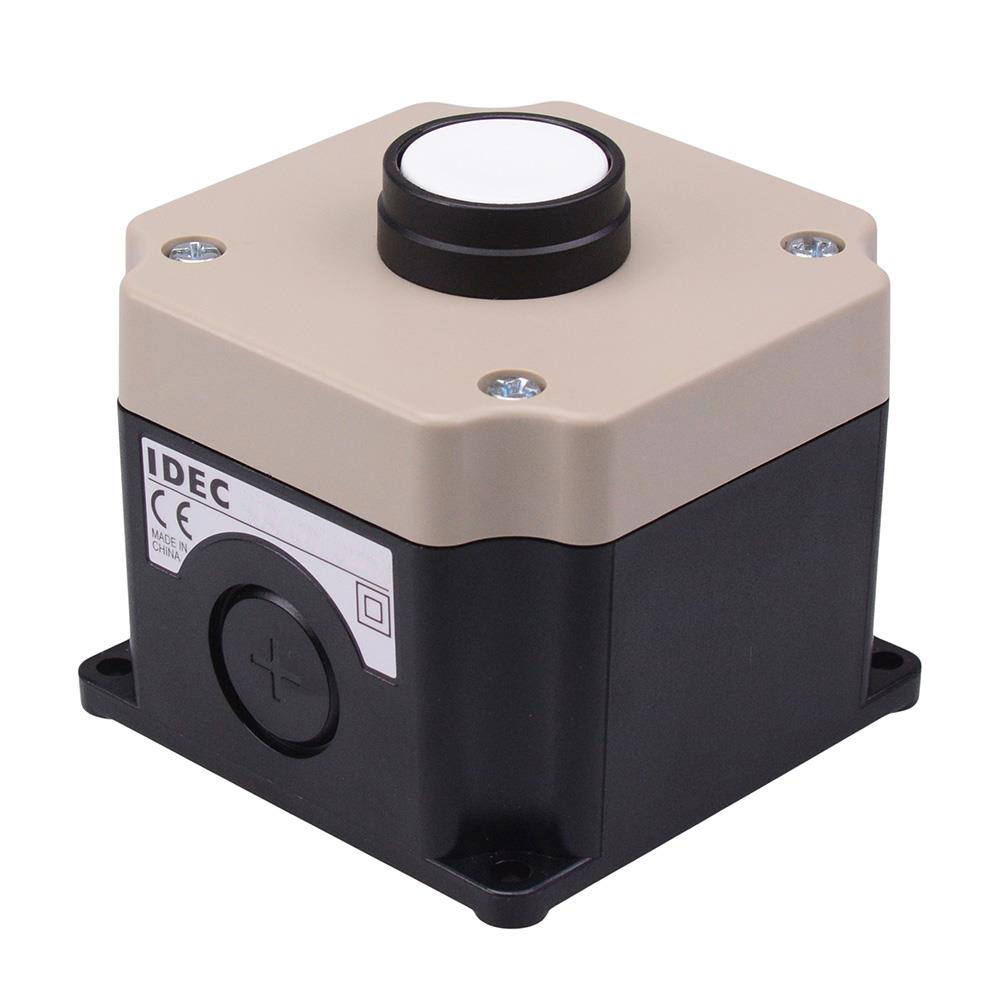

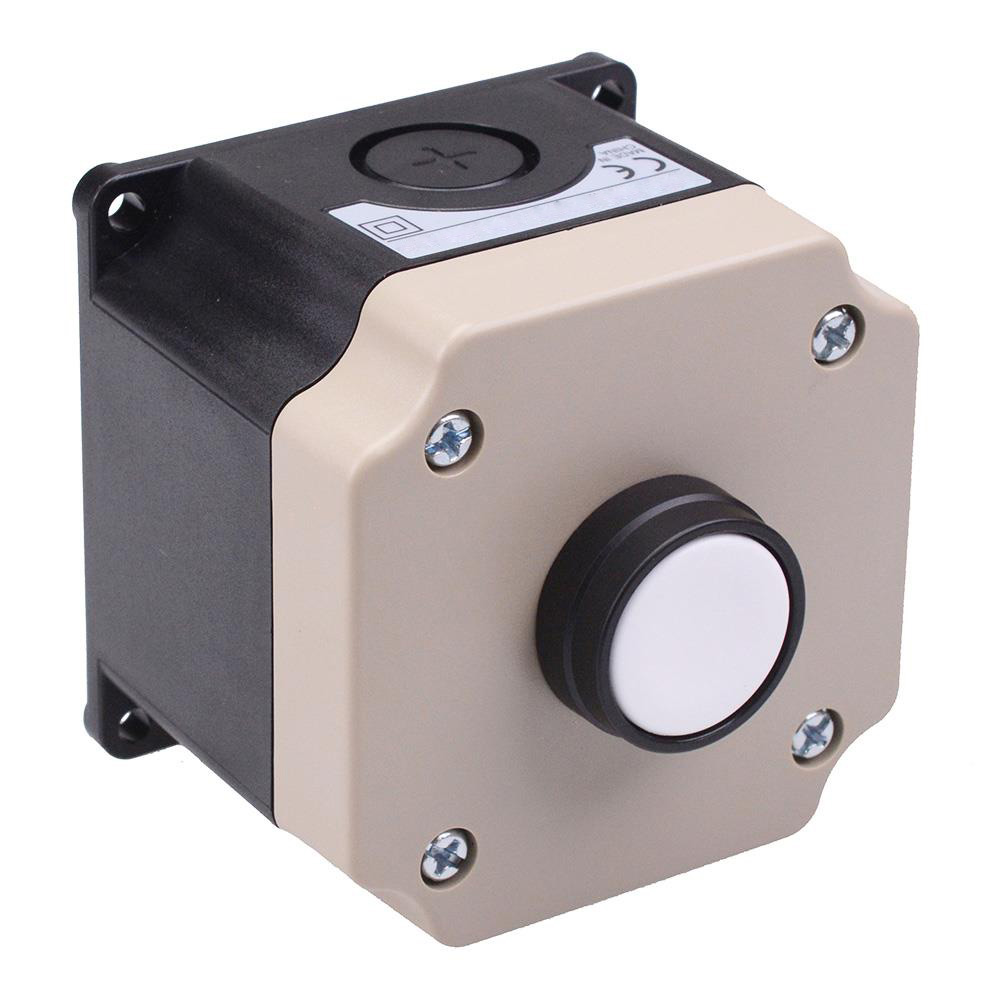

Beige plastic control box featuring IP65 protection fitted with a white momentary push button switch from the YW series manufactured by socoje. The switch and enclosure feature a heavy-duty rugged construction. The enclosure features 3*21.3mm diameter cable knockouts and mounting holes allowing it to be easily mounted to a panel.

  • 2NO and 1NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 23.6mm button diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Enclosure Dimensions: 76 x 76 x 59.5mm (length x width x height)
  • White 22mm Momentary Push Button Switch Control Station 2NO 1NC IP65

    White 22mm Momentary Push Button Switch Control Station 2NO 1NC IP65
