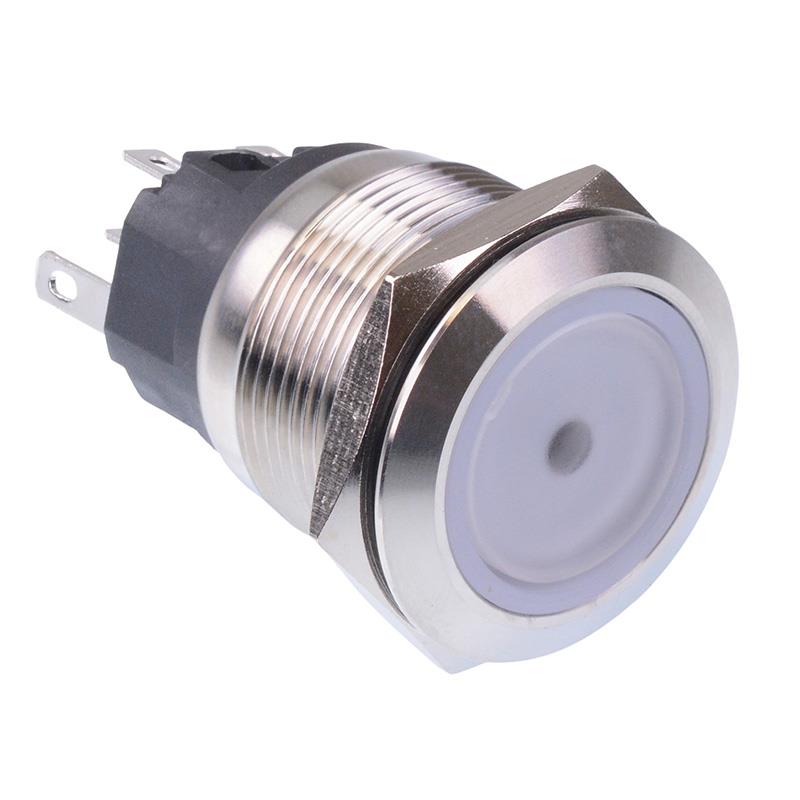

White LED Latching 22mm Vandal Push Button Switch DPDT 12V
from
$24.81
Ex Tax: $24.81
10 or more $22.07
25 or more $20.83
50 or more $19.60
100 or more $18.61
- Stock: In Stock
- Model: SCJ013831
- SKU: SCJ013831
Products Sold: 0
Product Views: 25
Ask a Question About This Product
- Description
Latching vandal resistant push button switch featuring a white LED requiring 12V supply voltage and 22mm panel cut-out diameter. The switch housing is stainless steel giving it a long lifespan and resistance against rust. The switch features IP65 protection rating and is suitable for a range of 12V applications including automotive and marine.
Suitable for use with adhesive labels Latching action White 12V LED Panel cut-out: 22mm Panel thickness: 1-8mm Current rating: 3A Protection level: IP65 Contacts: 2NO/2NC Material: stainless steel Terminals: 2.8 x 0.5mm Dimensions: 35.5 x 25mm (height x diameter)
