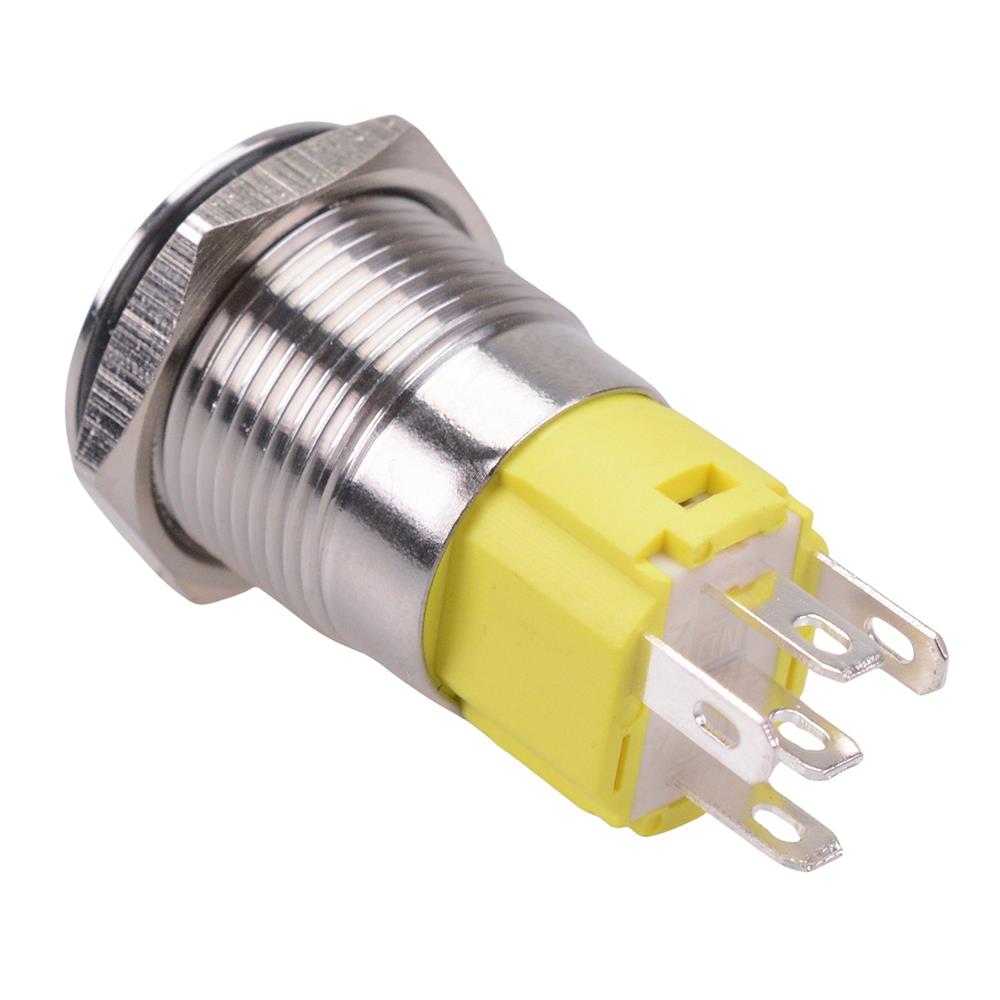

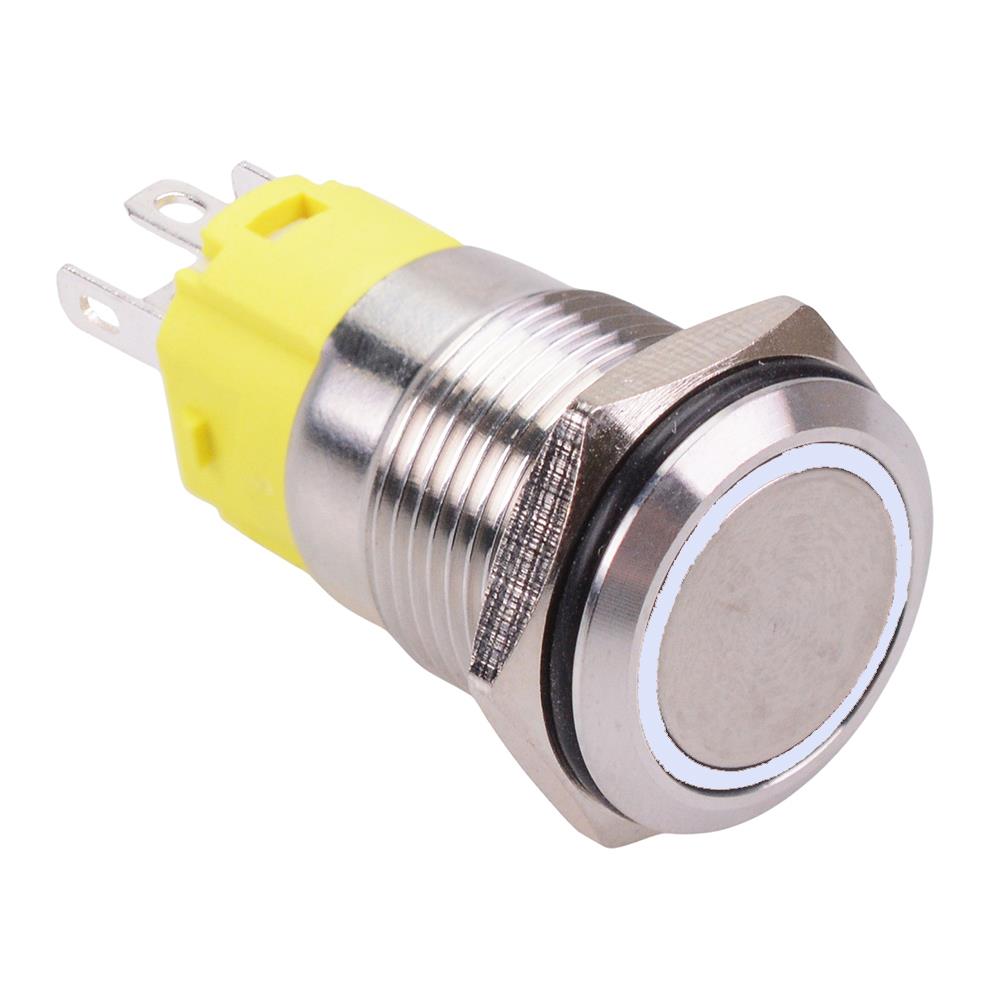

White LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT

White LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT
White LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT
White LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT
White LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT
White LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT
0 reviews - Write a review
from
$8.12
Ex Tax: $8.12
10 or more $7.22
25 or more $6.82
50 or more $6.42
100 or more $6.09
  • Stock: In Stock
  • Model: SCJ013685
  • SKU: SCJ013685
Products Sold: 0
Product Views: 24
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
Contact ConfigurationSPDT
Contact Rating3A 250VAC
Current Rating3A
IlluminatedYes
Electrical Life50,000 Cycles
Illumination ColourWhite
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +85°C
Panel Cut Out16mm
Switch OperationOn-On
Terminal TypeQuick Connect
Voltage Rating250VAC
  • Description
Latching vandal resistant push button switch featuring a white 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • White LED
  • 12V illumination voltage
  • IP65 protection rating
  • 16mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 3A 250VAC
  • Dimensions: 36.7 x 18mm (length x diameter)

    • White LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT

    White LED On-On Latching 16mm Vandal Resistant Push Button Switch SPDT
