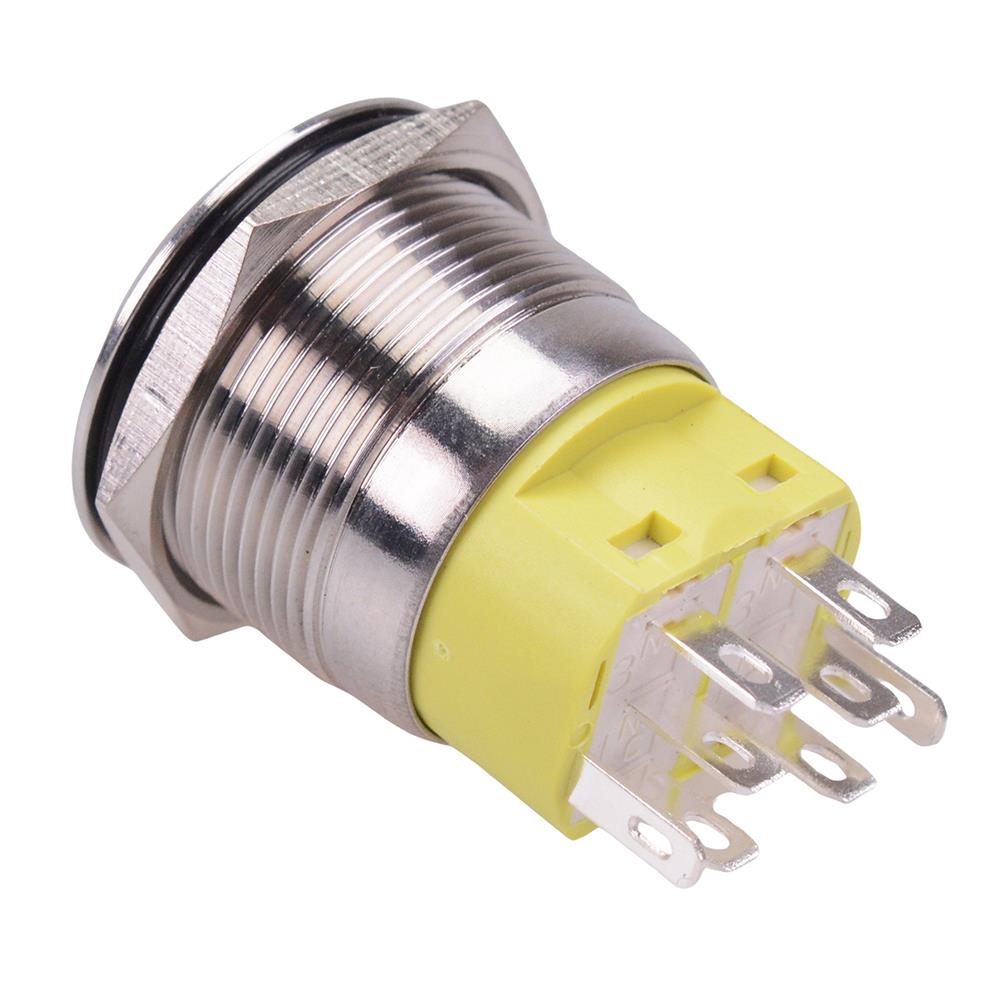

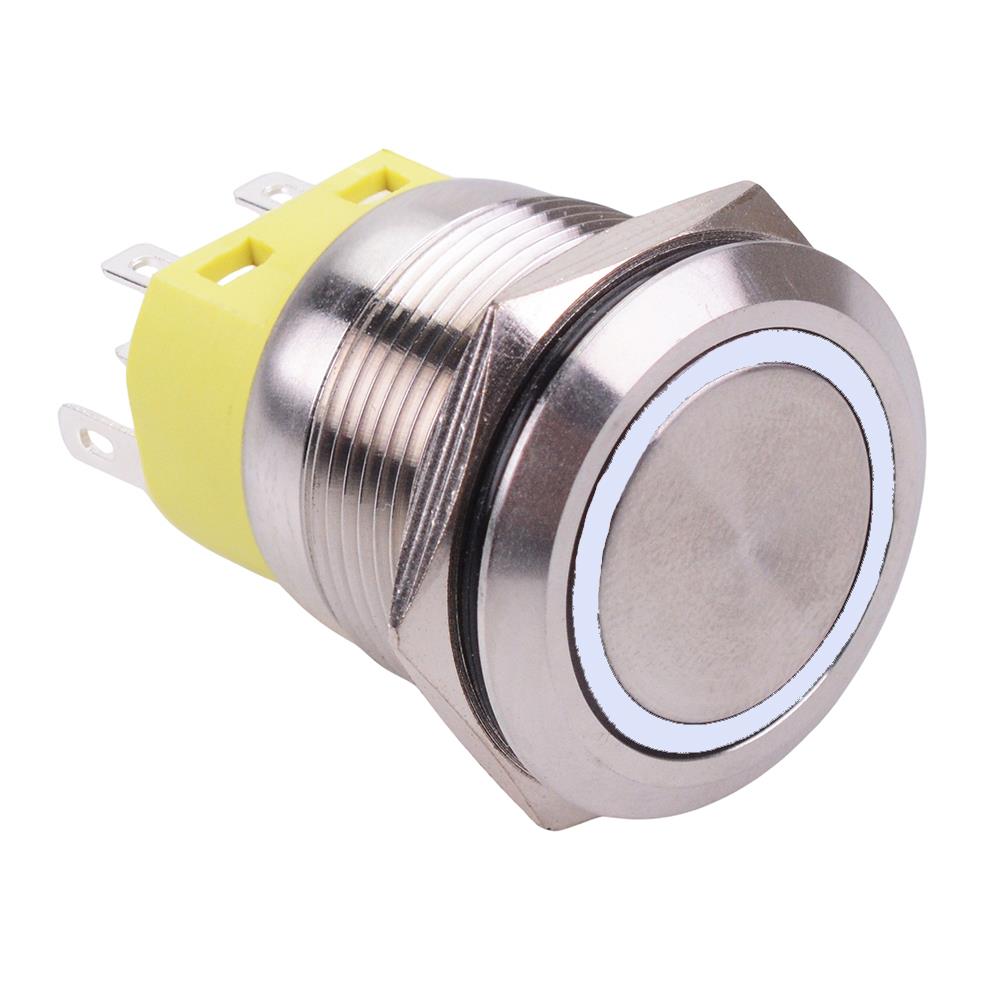

White LED On-On Latching 22mm Vandal Push Button Switch DPDT

White LED On-On Latching 22mm Vandal Push Button Switch DPDT
White LED On-On Latching 22mm Vandal Push Button Switch DPDT
White LED On-On Latching 22mm Vandal Push Button Switch DPDT
White LED On-On Latching 22mm Vandal Push Button Switch DPDT
White LED On-On Latching 22mm Vandal Push Button Switch DPDT
0 reviews - Write a review
from
$12.69
Ex Tax: $12.69
10 or more $11.29
25 or more $10.66
50 or more $10.02
100 or more $9.51
  • Stock: In Stock
  • Model: SCJ013791
  • SKU: SCJ013791
Products Sold: 0
Product Views: 24
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
ColourWhite
Contact ConfigurationDPDT
Contact Rating5A 250VAC
Current Rating5A
IlluminatedYes
Electrical Life50,000 Cycles
Illumination ColourWhite
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP67
Operating Temperature-25°C to +85°C
Panel Cut Out22mm
Switch OperationOn-On
Terminal TypeSolder
Voltage Rating250VAC
  • Description
Latching vandal resistant 22mm push button switch featuring a white 12V LED and DPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • White LED
  • 12V illumination voltage
  • IP67 protection rating
  • 22mm panel cut-out diameter
  • 2NO/2NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Dimensions: 35.4 x 25mm (length x diameter)
