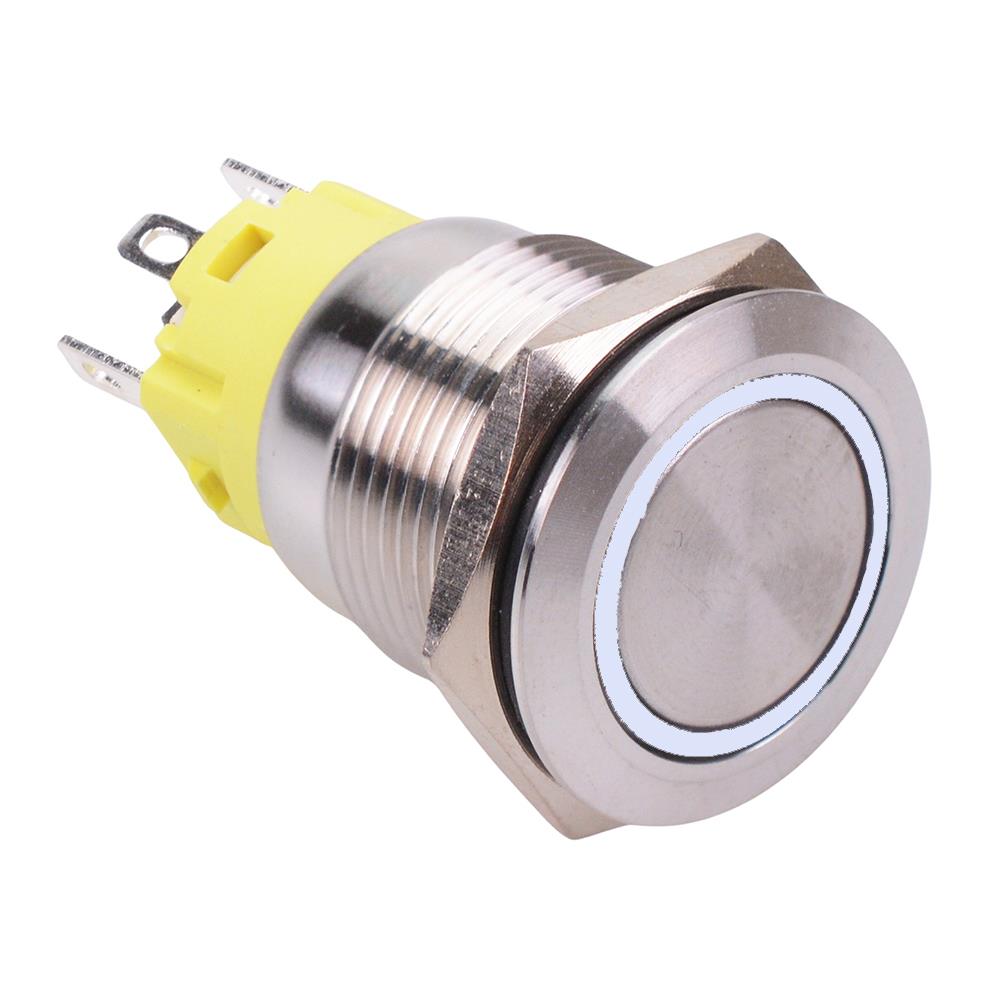

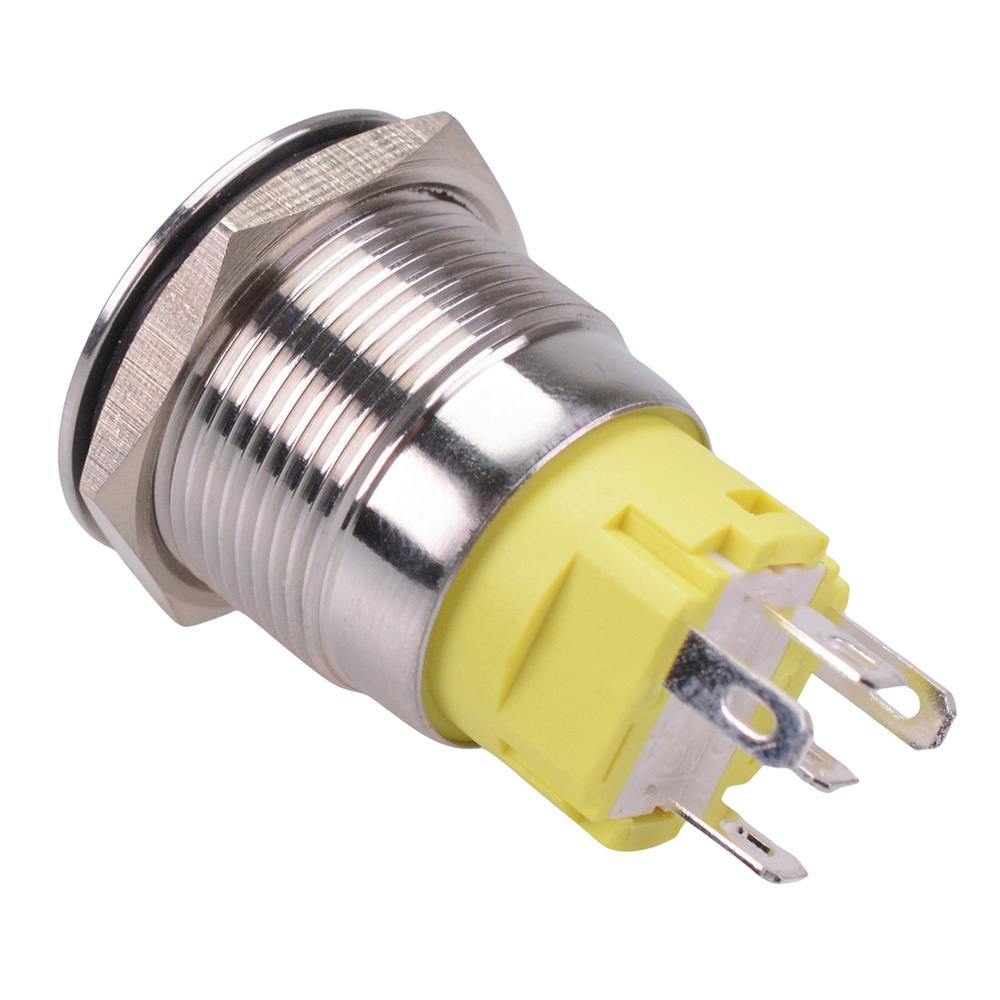

White LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT

White LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
White LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
White LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
White LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
White LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
0 reviews - Write a review
from
$9.01
Ex Tax: $9.01
10 or more $8.02
25 or more $7.58
50 or more $7.12
100 or more $6.76
  • Stock: In Stock
  • Model: SCJ013725
  • SKU: SCJ013725
Products Sold: 0
Product Views: 23
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
ColourWhite
Contact ConfigurationSPDT
Contact Rating5A 250VAC
Current Rating5A
IlluminatedYes
Electrical Life50,000 Cycles
Illumination ColourWhite
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +85°C
Panel Cut Out19mm
Switch OperationOn-(On)
Terminal TypeQuick Connect
Voltage Rating250VAC
  • Description
Momentary vandal resistant 19mm push button switch featuring a white 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Momentary action
  • White LED
  • 12V illumination voltage
  • IP65 protection rating
  • 19mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Dimensions: 35.1 x 22mm (length x diameter)

    • White LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT

    White LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
