White Off-(On) Black Momentary Vandal Resistant Push Button Switch 2A SPST
from
$3.98
Ex Tax: $3.98
10 or more $3.53
25 or more $3.34
50 or more $3.15
100 or more $2.98
- Stock: In Stock
- Model: SCJ013848
- SKU: SCJ013848
Products Sold: 0
Product Views: 214
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Momentary |
Colour | White |
Contact Configuration | SPST |
Contact Rating | 2A 48VDC |
Current Rating | 2A |
Illuminated | No |
Electrical Life | 200,000 Cycles |
Illumination Colour | Non Illuminated |
Material | Zinc Alloy |
Mounting Style | Panel |
Number of Positions | 2 |
Protection Level | IP65 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 12mm |
Switch Operation | Off-(On) |
Terminal Type | Solder |
Voltage Rating | 48VDC |
- Description

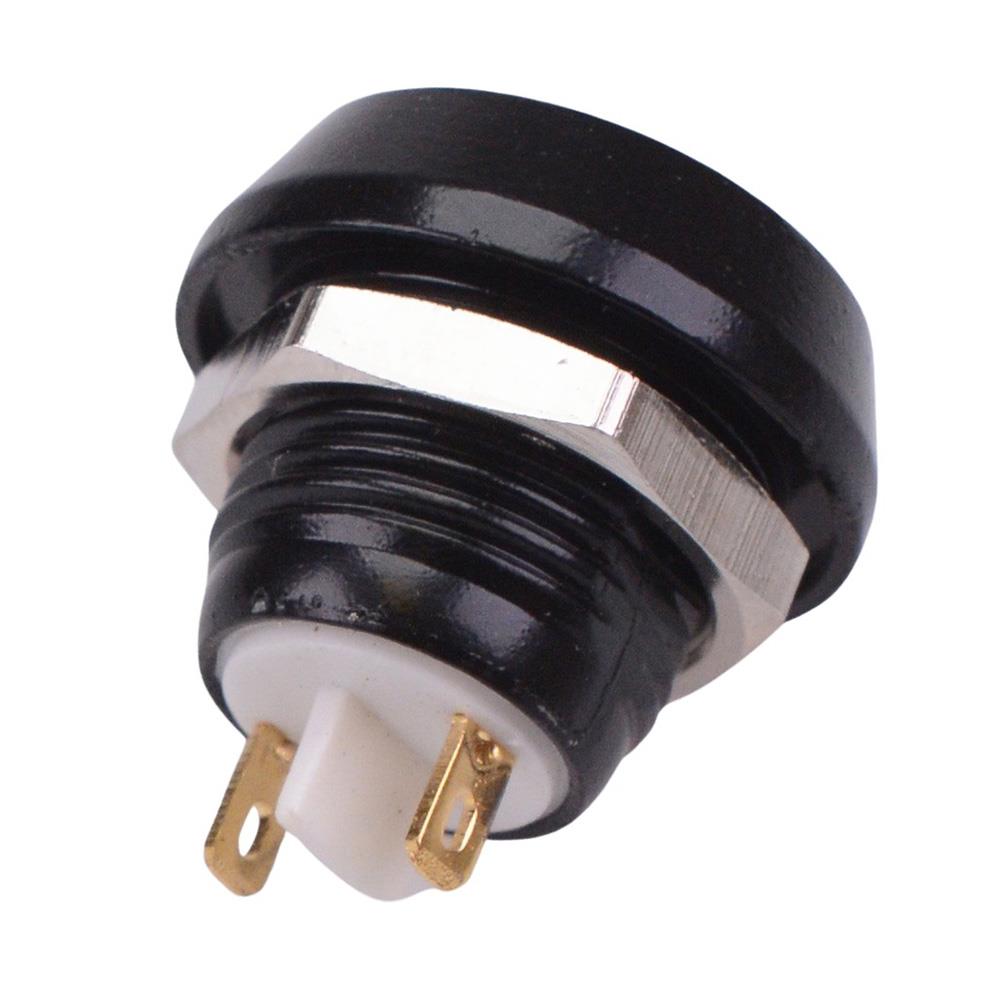

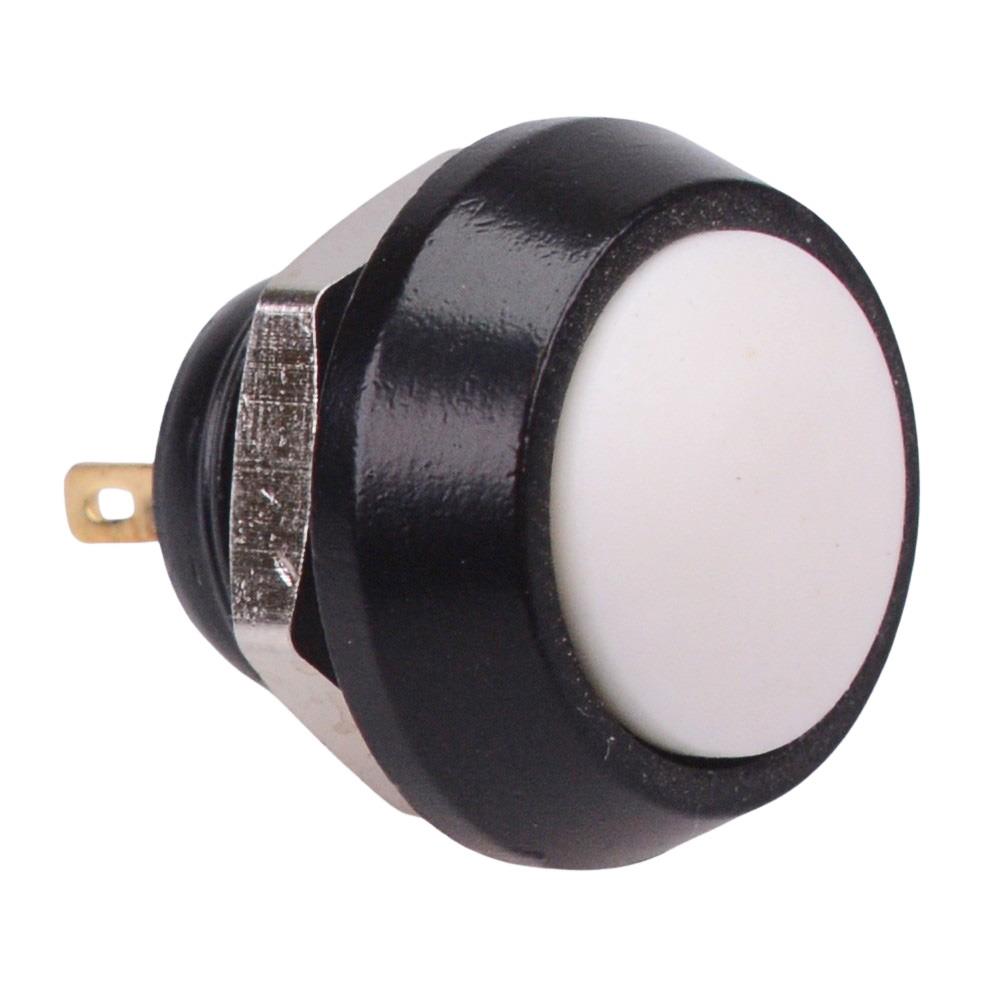

White Off-(On) Black Momentary Vandal Resistant Push Button Switch 2A SPST
White vandal resistant push button switch featuring a round actuator and robust zinc alloy body. The switch features an IP65 sealed construction and normally open SPST contacts suitable for a wide variety of applications.
Momentary Off-(On) action SPST contacts Zinc alloy body material 12mm panel cut-out 2A 48VDC rating Solder terminals 1,000,000 mechanical cycles Dimensions: 19.3 x 17.5mm (height x diameter)
