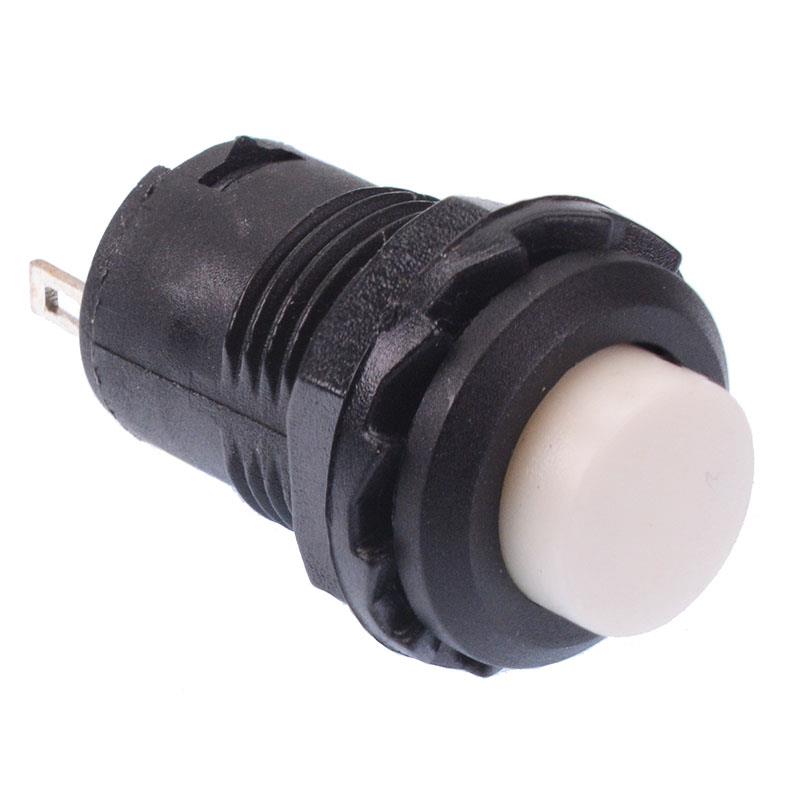

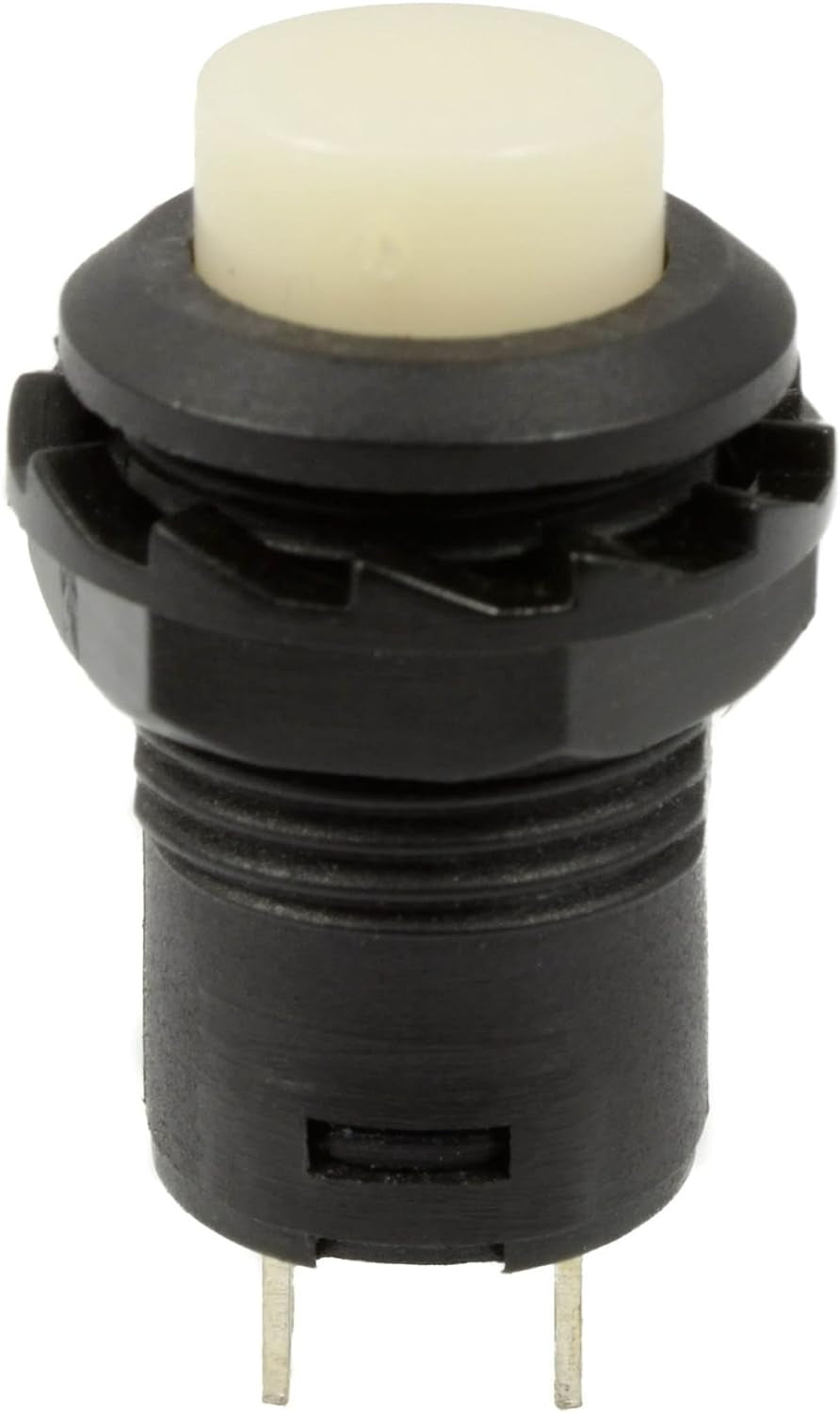

White Off(On) Momentary Round 12mm Switch SPST

White Off(On) Momentary Round 12mm Switch SPST 1

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	White
Contact Configuration	SPST
Contact Rating	1.5A 250VAC
Current Rating	1.5A
Illuminated	No
Electrical Life	10,000+ Cycles
Illumination Colour	Non Illuminated
Material	PA66
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-20°C to +65°C
Panel Cut Out	12mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

White Off(On) Momentary Round 12mm Switch SPST

Low cost round push button switches with a momentary operation and solder lug terminals ideal for a wide range of applications.

Suitable for panel mounting

Solder lug terminals

Momentary Off-(On) operation

SPST contacts

12mm panel cut-out

Dimensions: 30.5 x 16.5mm (Height x Diameter)

Maximum Panel Thickness: 5mm
