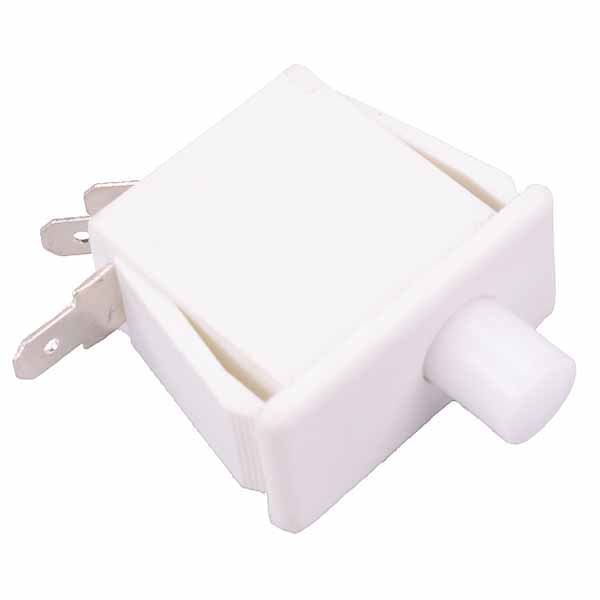

White Off-(On) Rectangle Momentary Push Button Switch 19mm SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	White
Contact Configuration	SPST
Contact Rating	6A 250VAC, 10A 125VAC
Current Rating	10A @ 125VAC
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	13.3 x 28.5mm
Switch Operation	Off-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Rectangular push button switch featuring a white actuator and Off-(On) push to make momentary action, suitable for a range of door applications including fridges.

Off-(On) momentary action

SPST contacts

Rating: 10A 125VAC, 6A 250VAC

Quick connect 4.8mm terminals

Panel cut-out: 13.3 x 28.5mm

Dimensions: 41.9 x 31.7 x 17.4mm (Height x Length x Width)

Actuator dimensions: 9.2mm x 8.3mm (Height x Diameter)
