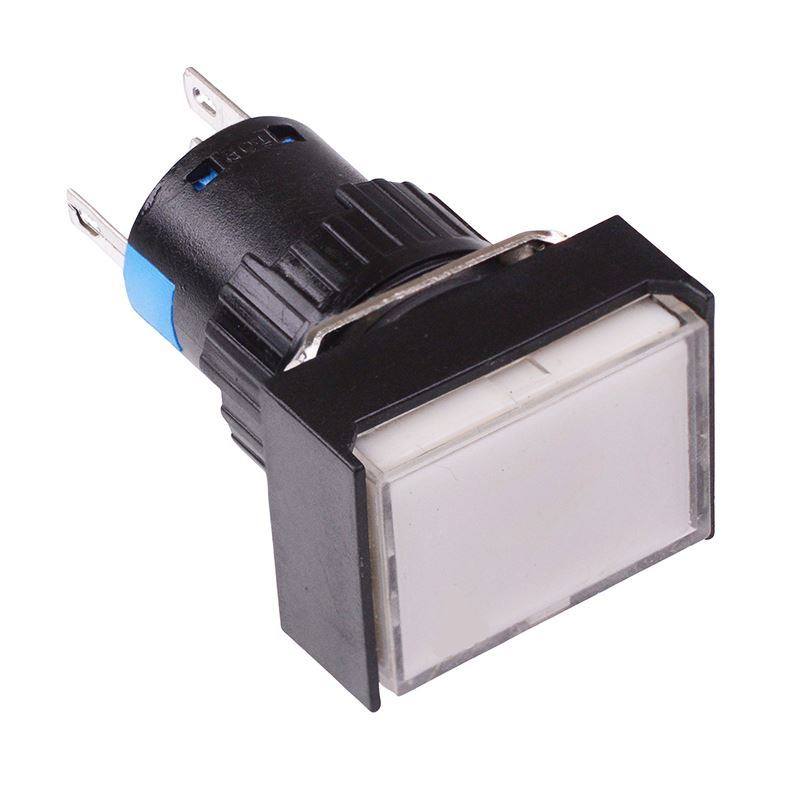

White Rectangle Latching 16mm Push Button Switch NO/NC 12V

White Rectangle Latching 16mm Push Button Switch NO/NC 12V
White Rectangle Latching 16mm Push Button Switch NO/NC 12V
0 reviews - Write a review
from
$5.38
Ex Tax: $5.38
10 or more $4.79
25 or more $4.53
50 or more $4.25
100 or more $4.03
  • Stock: In Stock
  • Model: SCJ014126
  • SKU: SCJ014126
Products Sold: 0
Product Views: 25
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
ColourWhite
Contact ConfigurationSPST
Contact MaterialSilver Plated
Contact Rating5A 250VAC/DC
Current Rating5A
IlluminatedYes
Electrical Life100,000 Cycles
Illumination ColourWhite
Illumination Voltage12VDC
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +55°C
Panel Cut Out16mm
Switch OperationOn-Off
Terminal TypeSolder
Voltage Rating250VAC
  • Description
White latching push button switch featuring a rectangle illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, automotive etc.

  • White 12V illumination
  • NO/NC contacts
  • Solder terminals
  • Maximum voltage: 250VAC/DC
  • Maximum current: 5A
  • Panel cut-out: 16mm
  • Protection level: IP65
  • Button size: 15.4 x 21.4mm
  • Dimensions: 40.5 x 28 x 18mm

    • White Rectangle Latching 16mm Push Button Switch NO/NC 12V
