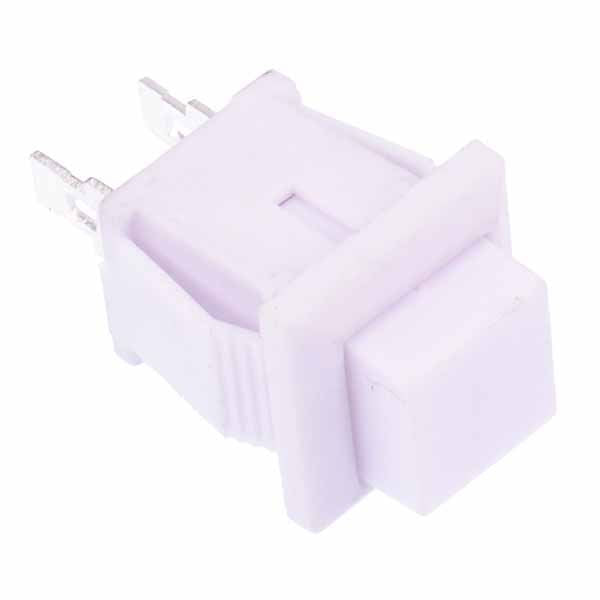

White Square Momentary Off-(On) Push to Make Switch 1A SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	White
Contact Configuration	SPST
Contact Rating	1A 125VAC
Current Rating	1A
Illuminated	No
Electrical Life	10000 Cycles Min
Illumination Colour	Non Illuminated
Material	PA66
Mounting Style	Panel
Number of Positions	2
Operating Temperature	0°C to +65°C
Panel Cut Out	12.4 x 11.0mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	125VAC

Description

White Square Momentary Off-(On) Push to Make Switch 1A SPST

White square push to make switch featuring SPST contacts and snap-in mounting.

Off-(On) push to make operation

Rating: 1A 125VAC

SPST contacts

Panel cut-out: 12.4 x 11mm

White actuator and housing

Nylon 94V-2 housing

Dimensions: 24.9 x 14 x 14mm (H x W x L)
