24" x 36" Socoje CNC Router Water Cooling Machine For Wood Acrylic 1 set
from
$4,828.45
Ex Tax: $4,828.45
- Stock: In Stock
- Model: SCJ006533
- SKU: SCJ006533
Products Sold: 0
Product Views: 351
Ask a Question About This Product
- Description
24" x 36" Socoje CNC Router Water Cooling Machine For Wood Acrylic 1 set
About this product
- 3HP 220V Single-Phase
- Cooling Method: Liquid-Cooled
- Spindle RPM: 6,000 – 24,000 RPM
- Ball Screw: On All Axis
- Machine Work Table: 24 inches X 36 inches
Product Description
Product Description
Application:
Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper.
Deatils:

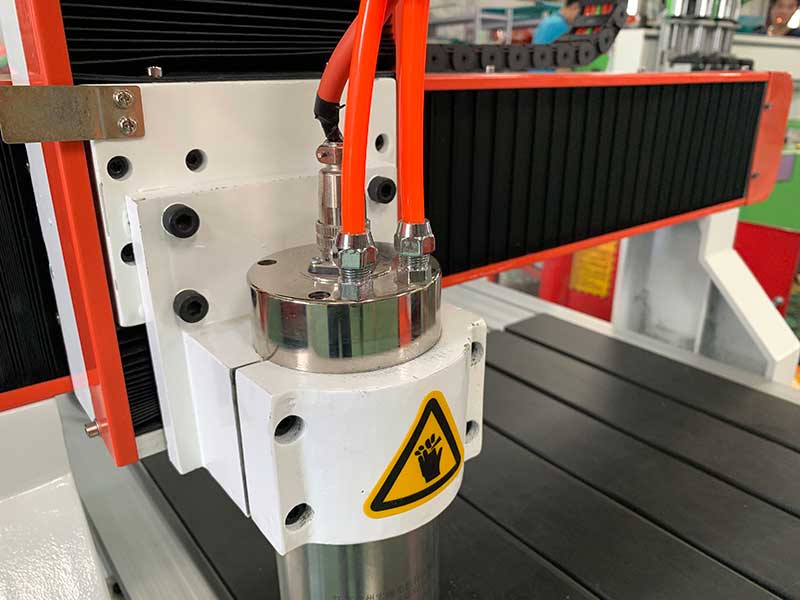

2.2w water cooled spindle, ER11 Collet
Product Information
Technical Details
| X-Axis Travel | 24 Inches (60 cm) |
| Y-Axis Travel | 36 Inches (90 cm) |
| Z-Axis Travel | 5.5 Inches ( 14 cm) |
| Precision Ball Screw Axis | X/Y/Z |
| Traveling Speed (X, Y, Z tri-axial move together) | 197 IPM (500 cm/min) |
| CNC Controller | DSP Handle |
| Max. Spindle Speed | 26000 RPM |
| Power Supply | AC 220V Single-Phase 60Hz |
| Collet | ER 11 |
| Spindle Power | 2.2W |
| Cooling Method | Liquid |
| Control system | DSP Handle |
| Software suggested | Artcam, UG, AutoCAD |
| Command Language | G code, *uoo, *mmg, *plt, *nc |
