About this product
1. 230V, 3 phase, 60Hz.
2. Super fast CNC tenon machine with Duplex processing stage.
3. Max. tenon machining size: 5-33/64 inch × 3-5/32 inch (140mm × 80mm)
4. The memory quantity of the processing files are up to 41 group and extendable.
5. Large touch screen in 10-7/16 inch is easy to operate.
6. Long service life equiped with imported precision screw rod type guide.
Product Description
Product Description

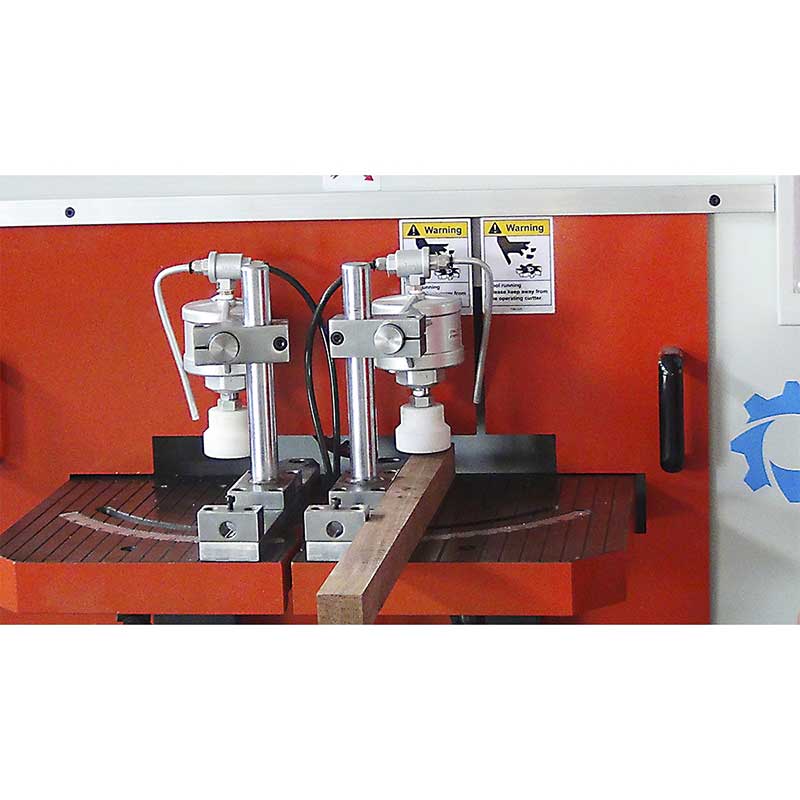

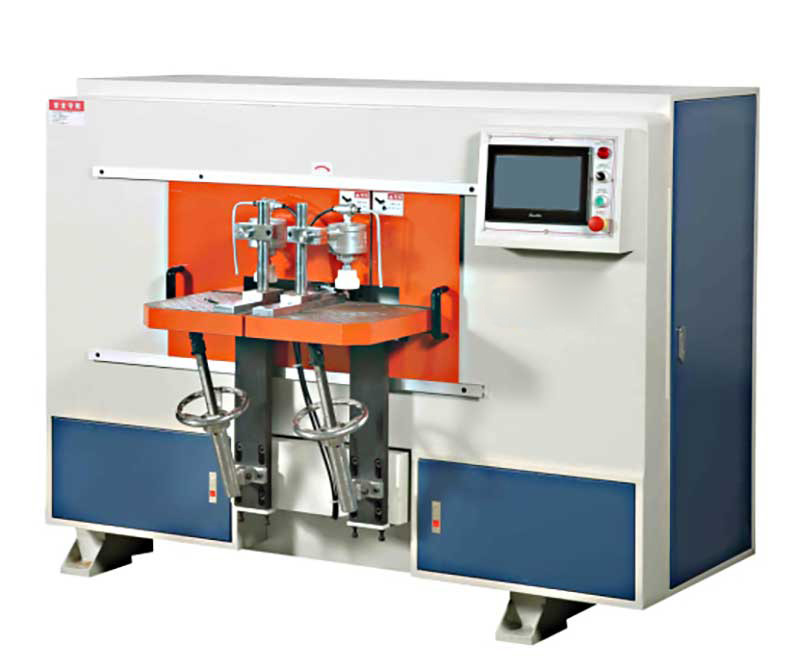

The SDS-140.CNC tenon machine is especially designed to make tenons for chair. It is equipped with two working units. Both of the units make perfect tenons.
Product Information
Technical Details
Max. tenon machining size | 5-33/64 inch × 3-5/32 inch (140 mm × 80 mm) |
Knife Shaft Diameter | 1-3/16 inch (30 mm) |
Knife Shaft R.P.M. | 6800 - 12000 RPM. |
Spindle Power | 5.5 KW / 7.37 HP |
X-axis Servo | 1.0 KW / 1.36 HP |
Y-axis Servo | 1.0 KW / 1.36 HP |

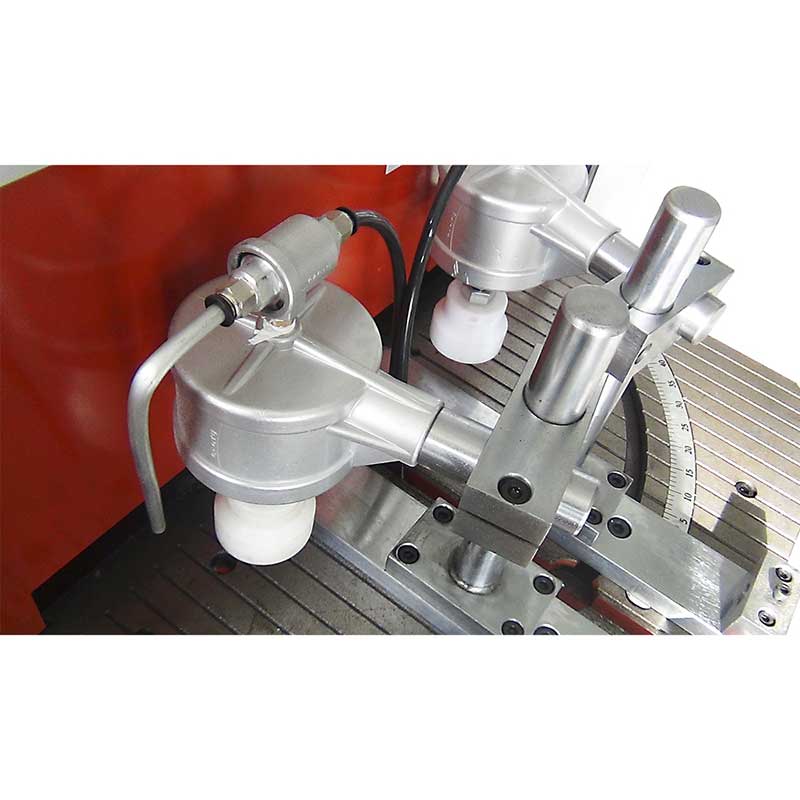

Stock Hold-down Device | 2 PCS |
Working Air Pressure | 87 psi |
Dust Suction Inlet | Dia: 3 -15/16 inch (100 mm) × 2PCS |
Net Weight | 1764 lbs |
Gross Weight | 1770 lbs |
Dimension | 5 ft 10-55/64 inch × 3 ft 7-5/16 inch × 4 ft 9-3/32 inch (1800 mm × 1100 mm × 1450 mm) |
