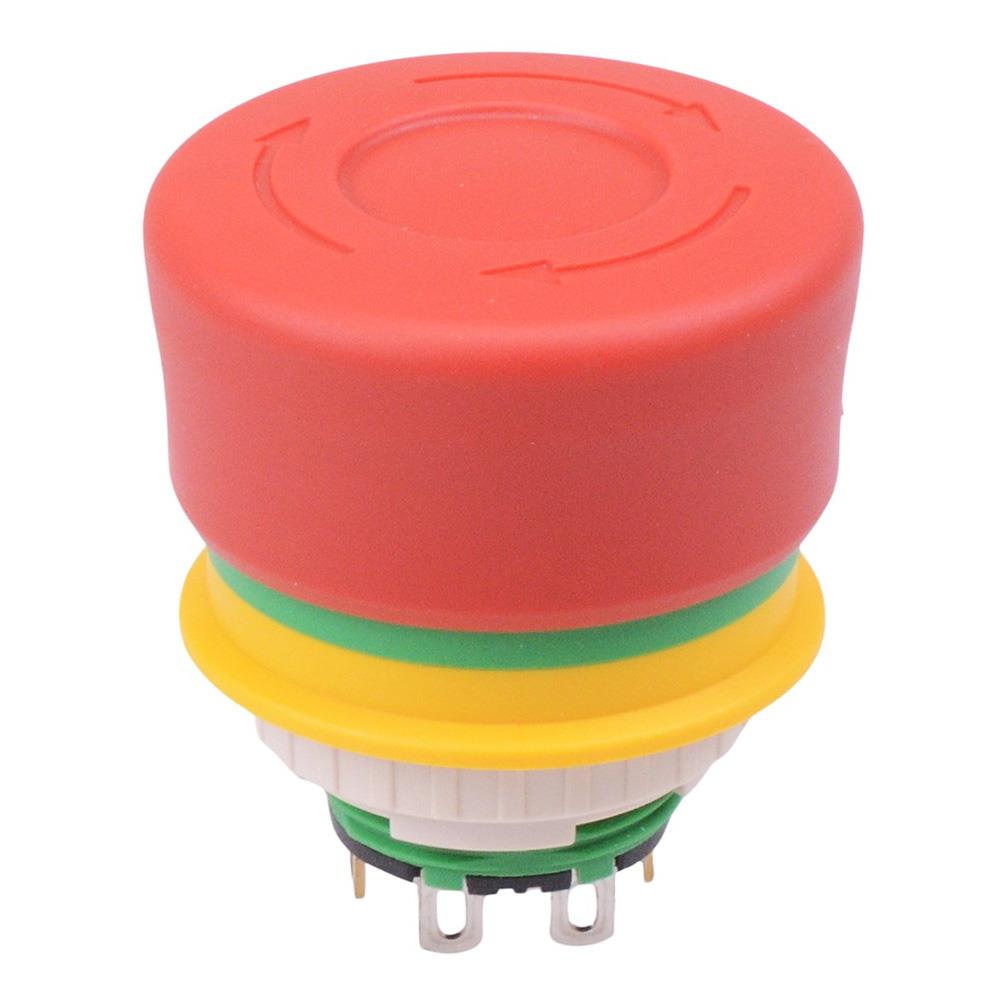

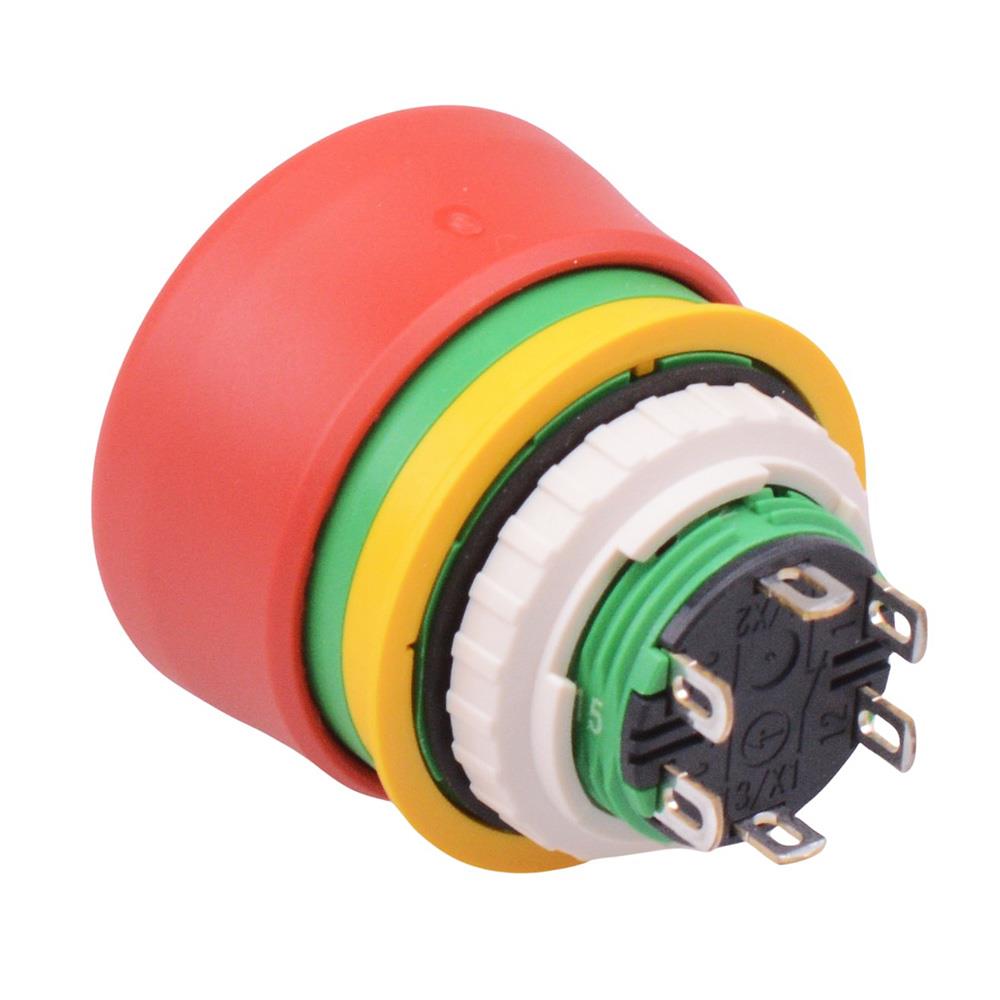

XA1E-BV3SG12R Unibody 16mm Emergency Stop Switch 1NO-2NC
from
$34.40
Ex Tax: $34.40
10 or more $30.62
25 or more $28.89
50 or more $27.18
100 or more $25.80
- Stock: In Stock
- Model: SCJ011686
- SKU: SCJ011686
Products Sold: 0
Product Views: 21
Ask a Question About This Product
- Description
The XA1E-BV3SG12R is a short body e-stop switch compliant with ISO13850, ensuring the highest level of safety and functionality. The XA series features a minimalist installation footprint and unibody construction incorporating socoje's 3rd generation reverse energy structure. The emergency stop switch features a green status indicator to check the operating status and an escape structure preventing foreign objects form being caught in operation. The switch is certified for outdoor use and is designed for applications including robotics, automated vehicles, EV charging, remote controls and many more.
Fail safe design Contacts: 1NO-2NC Rated current: 5A Rated insulation voltage: 250V Panel cut-out: 16.2mm Panel thickness: 0.8-3.7mm Behind panel depth: 12.6mm Head diameter: 30mm Solder terminals ISO13850:2015 compliant
