XA1E-LV3SG02Q4WR illuminated Unibody 16mm Emergency Stop Switch 2NC
from
$38.02
Ex Tax: $38.02
10 or more $33.83
25 or more $31.93
50 or more $30.04
100 or more $28.52
- Stock: In Stock
- Model: SCJ011687
- SKU: SCJ011687
Products Sold: 0
Product Views: 70
Ask a Question About This Product
- Description

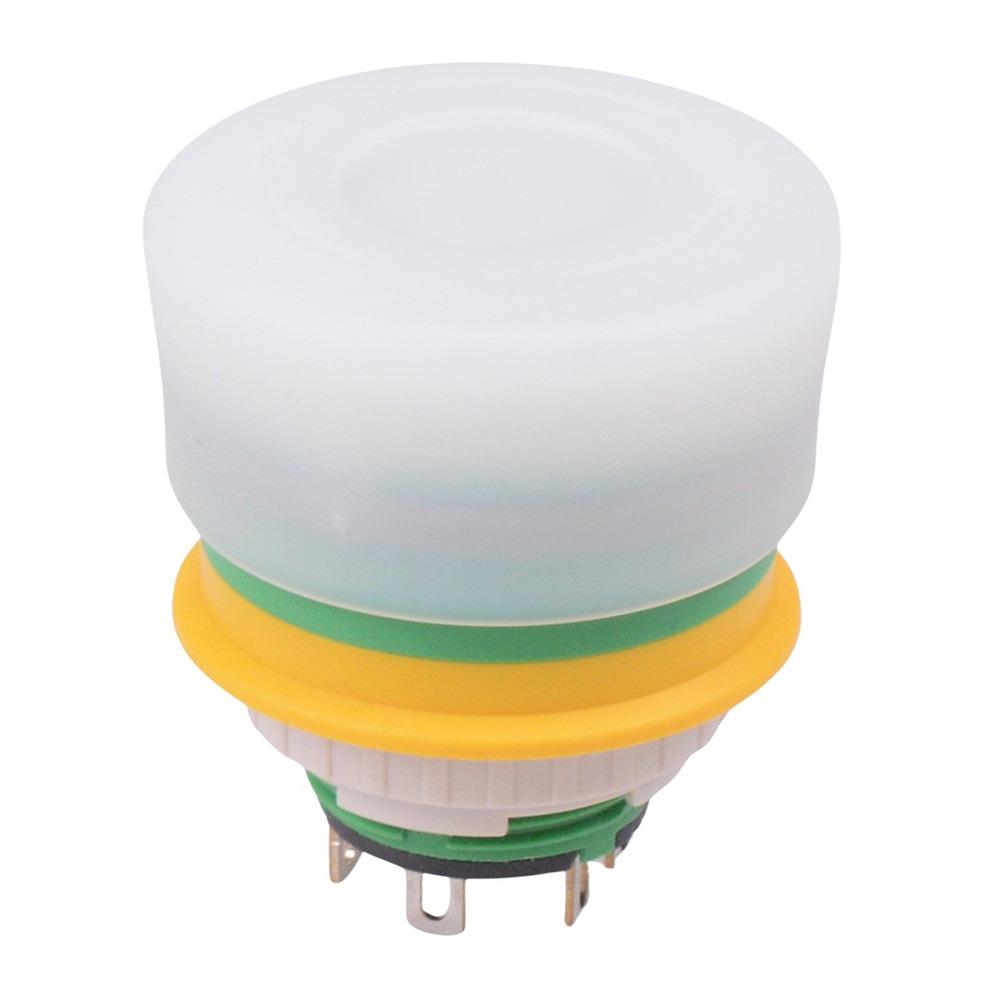

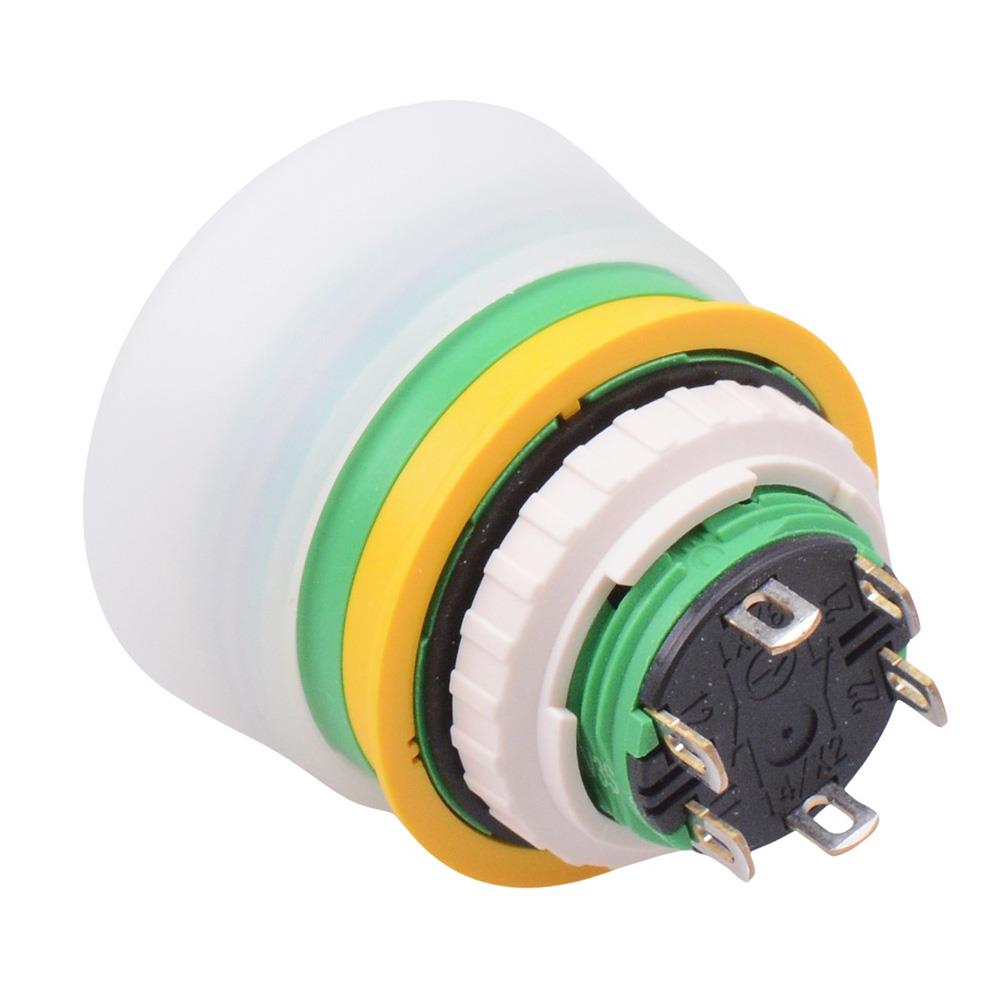

XA1E-LV3SG02Q4WR illuminated Unibody 16mm Emergency Stop Switch 2NC
The XA1E-LV3SG02Q4WR is a short body illuminated e-stop switch compliant with ISO13850, ensuring the highest level of safety and functionality. The XA series features a minimalist installation footprint and unibody construction incorporating socoje's 3rd generation reverse energy structure. The emergency stop switch features a green status indicator to check the operating status and an escape structure preventing foreign objects form being caught in operation. The switch is certified for outdoor use and is designed for applications including robotics, automated vehicles, EV charging, remote controls and many more.
Fail safe design White button, red illumination Contacts: 2NC Rated current: 3A Rated insulation voltage: 250V illumination rating: 24VAC/DC Panel cut-out: 16.2mm Panel thickness: 0.8-3.7mm Behind panel depth: 12.6mm Head diameter: 30mm Solder terminals ISO13850:2015 compliant
