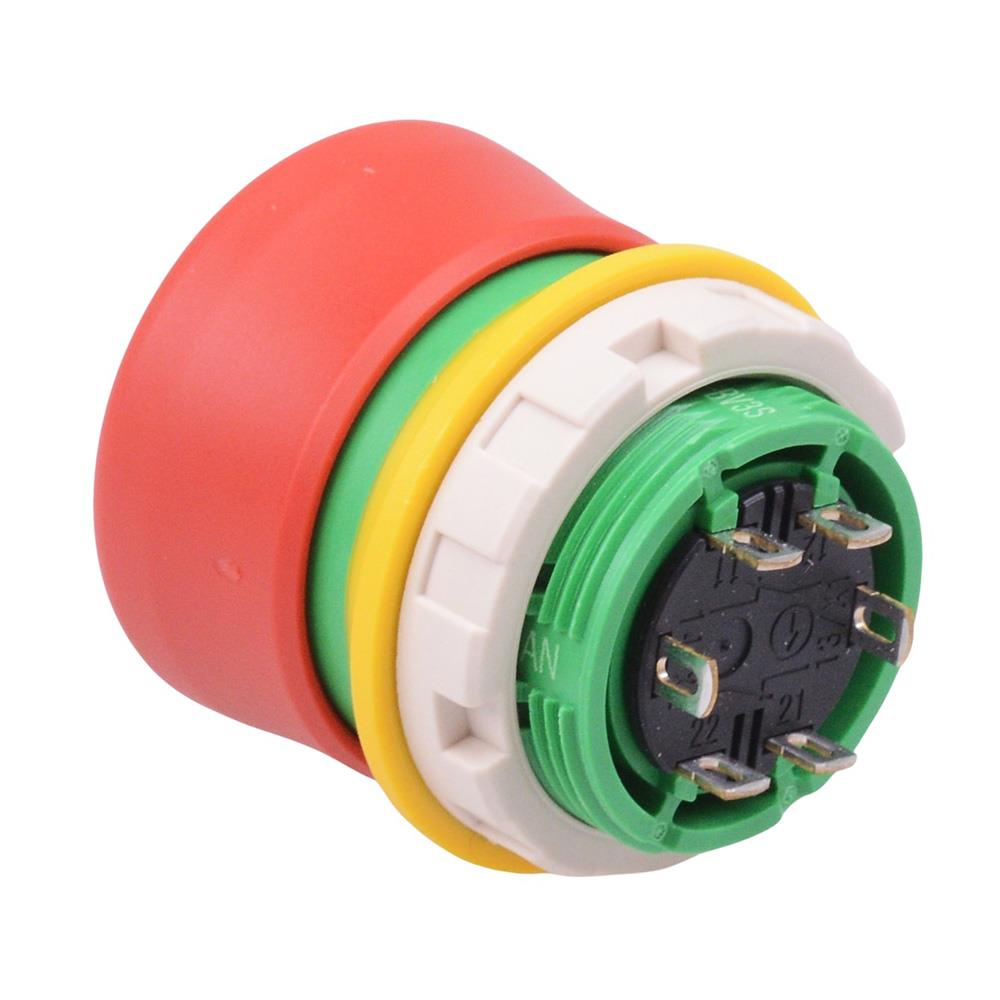

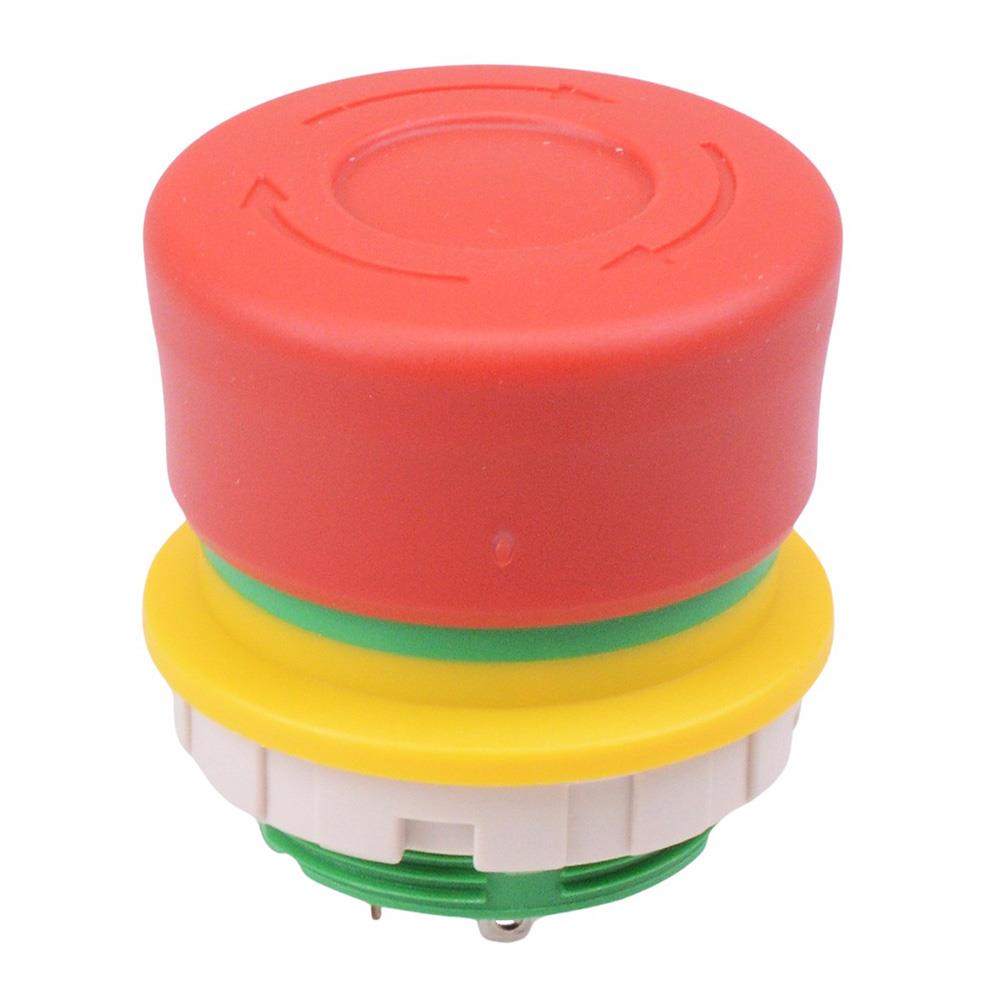

XW1E-BV3SG12R Unibody 22mm Emergency Stop Switch 1NO-2NC

Buy Now

Specifications

Attributes List
Actuation	Twist Release
MOQ	1
Colour	Red
Contact Configuration	1NO-2NC
Head Type	Mushroom
Current Rating	5A
Illuminated	No
Electrical Life	100,000 Cycles
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65, IP67, IP69K
Operating Temperature	-25°C to +70°C
Panel Cut Out	22.3mm
Product Series	XW
Terminal Type	Solder
Voltage Rating	250V

Description

The XW1E-BV3SG12R is a short body e-stop switch compliant with ISO13850, ensuring the highest level of safety and functionality. The XA series features a minimalist installation footprint and unibody construction incorporating socoje's 3rd generation reverse energy structure. The emergency stop switch features a green status indicator to check the operating status and an escape structure preventing foreign objects form being caught in operation. The switch is certified for outdoor use and is designed for applications including robotics, automated vehicles, EV charging, remote controls and many more.

Fail safe design

Contacts: 1NO-2NC

Rated current: 5A

Rated insulation voltage: 250V

Panel cut-out: 22.3mm

Panel thickness: 0.8-3.7mm

Behind panel depth: 12.6mm

Head diameter: 30mm

Solder terminals

ISO13850:2015 compliant
