Yellow 12V illuminated 22mm Mushroom Momentary Push Button Switch 1NO-1NC IP65 YW1L-M4E11Q3Y

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Yellow
Contact Configuration	1NO-1NC
Head Type	Mushroom
Contact Rating	2A 380V, 6A 240V
Current Rating	10A
Illuminated	Yes
Electrical Life	100,000 Cycles
Illumination Colour	Green
Illumination Voltage	12V
Rated Thermal Current	10A
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-20°C to +55°C
Panel Cut Out	22.3mm
Panel Thickness	0.8-6mm
Product Series	YW
Terminal Type	Screw
Voltage Rating	600V

Description

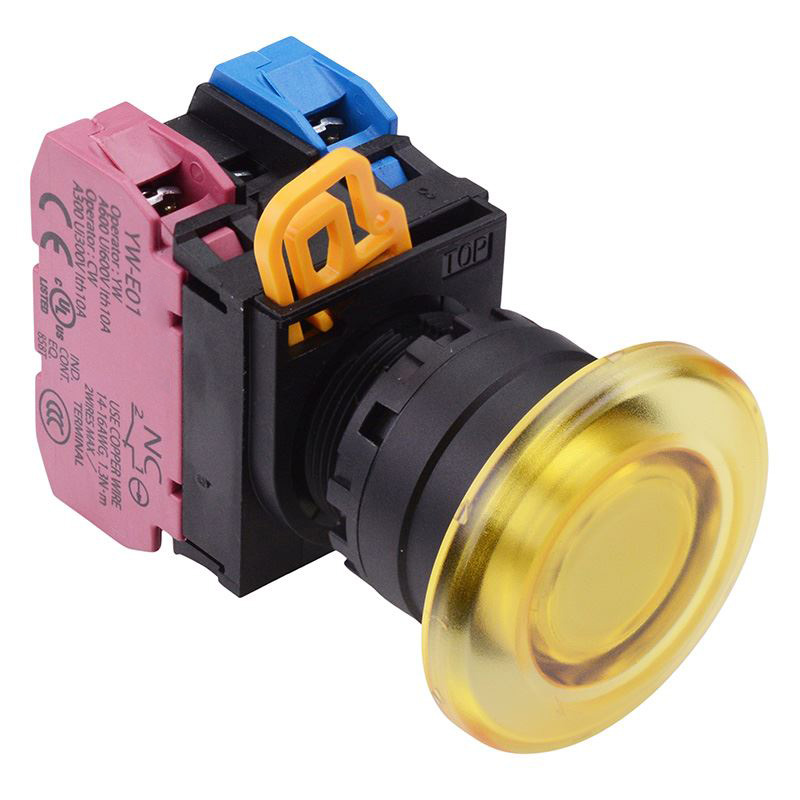

The YW1B-M4E11Q3Y is an illuminated yellow momentary push button switch with a mushroom head from the YW series manufactured by socoje. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

1NO-1NC contacts

12V LED illumination

Voltage rating: 600V

Current rating: 10A

22mm panel cut-out

40mm button diameter

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
