Yellow LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
from
$11.77
Ex Tax: $11.77
10 or more $10.48
25 or more $9.90
50 or more $9.30
100 or more $8.83
- Stock: In Stock
- Model: SCJ013788
- SKU: SCJ013788
Products Sold: 0
Product Views: 137
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Latching |
Colour | Yellow |
Contact Configuration | SPDT |
Contact Rating | 5A 250VAC |
Current Rating | 5A |
Illuminated | Yes |
Electrical Life | 50,000 Cycles |
Illumination Colour | Yellow |
Illumination Voltage | 12VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Positions | 2 |
Protection Level | IP65 |
Operating Temperature | -25°C to +85°C |
Panel Cut Out | 22mm |
Switch Operation | On-On |
Terminal Type | Solder |
Voltage Rating | 250VAC |
- Description

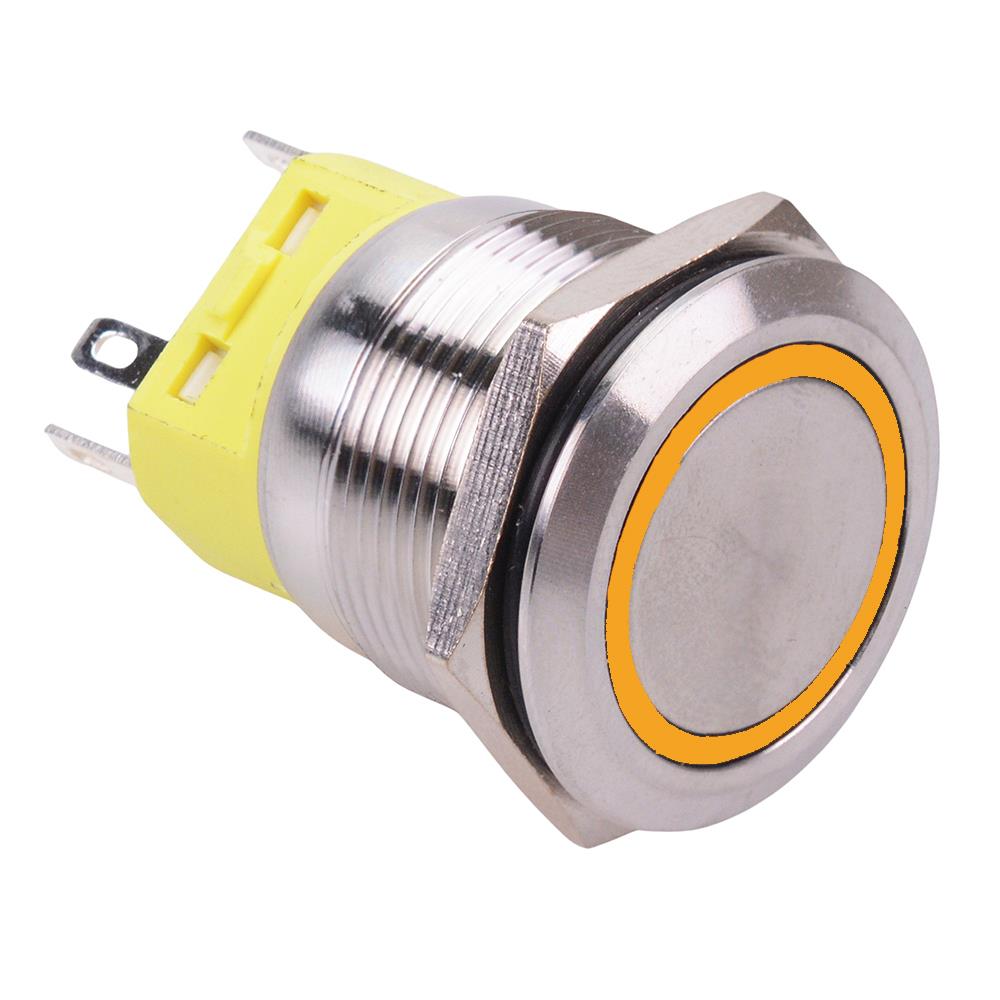

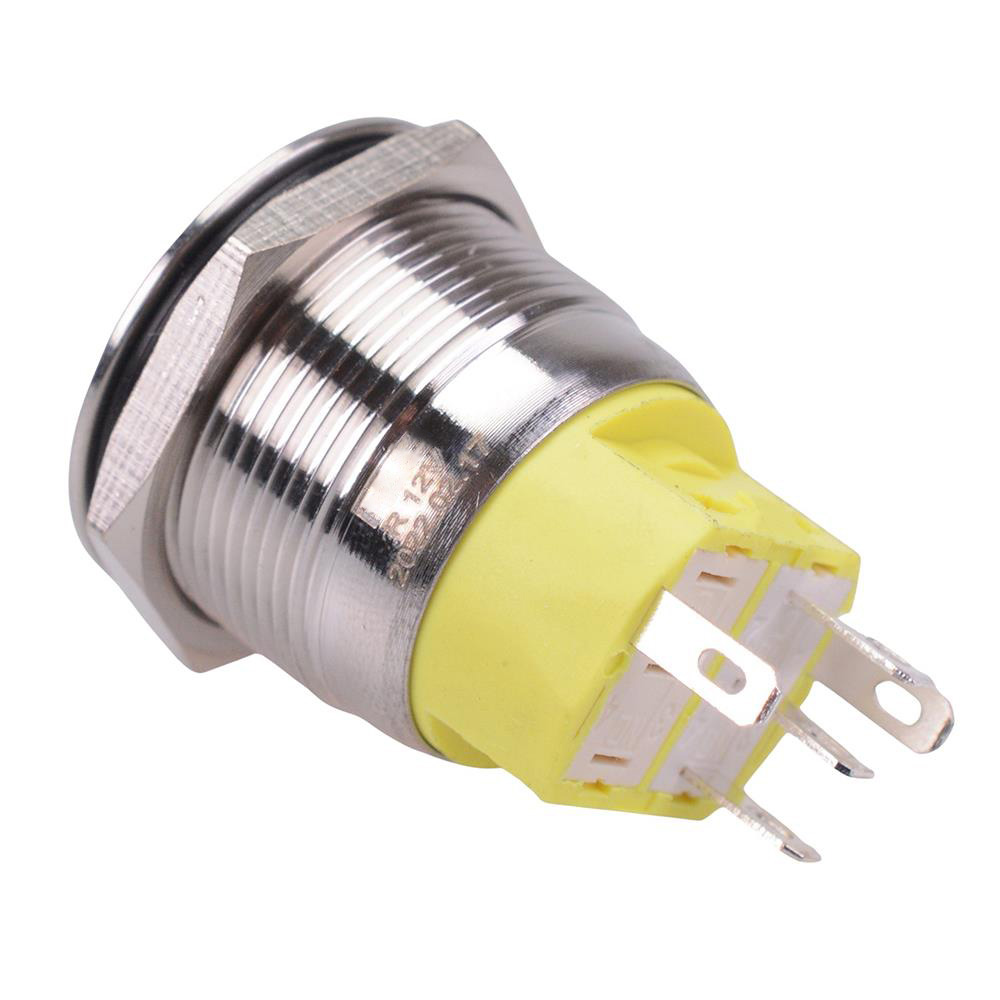

Yellow LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
Latching vandal resistant 22mm push button switch featuring a yellow 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Latching action Yellow LED 12V illumination voltage IP67 protection rating 22mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.4 x 25mm (length x diameter)
