Yellow LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
from
$9.01
Ex Tax: $9.01
10 or more $8.02
25 or more $7.58
50 or more $7.12
100 or more $6.76
- Stock: In Stock
- Model: SCJ013785
- SKU: SCJ013785
Products Sold: 0
Product Views: 126
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Momentary |
Colour | Yellow |
Contact Configuration | SPDT |
Contact Rating | 5A 250VAC |
Current Rating | 5A |
Illuminated | Yes |
Electrical Life | 50,000 Cycles |
Illumination Colour | Yellow |
Illumination Voltage | 12VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Positions | 2 |
Protection Level | IP65 |
Operating Temperature | -25°C to +85°C |
Panel Cut Out | 19mm |
Switch Operation | On-(On) |
Terminal Type | Quick Connect |
Voltage Rating | 250VAC |
- Description

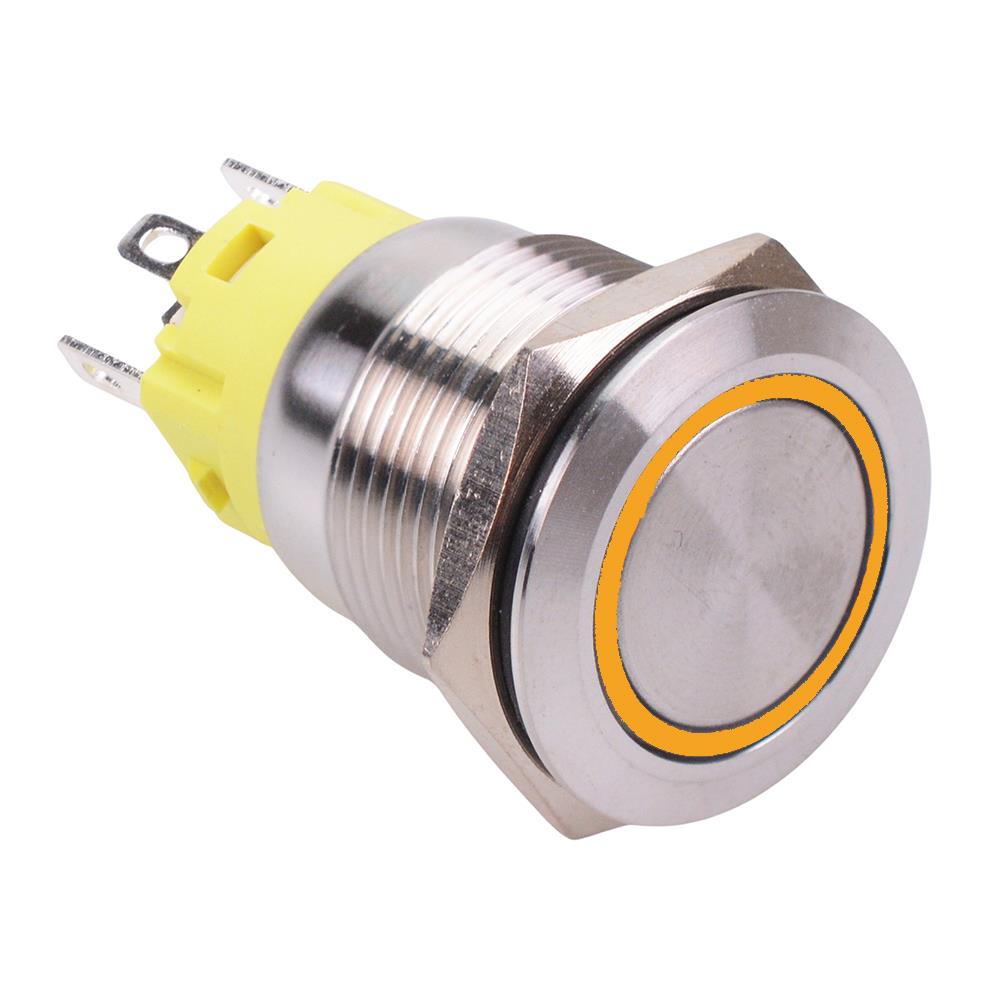

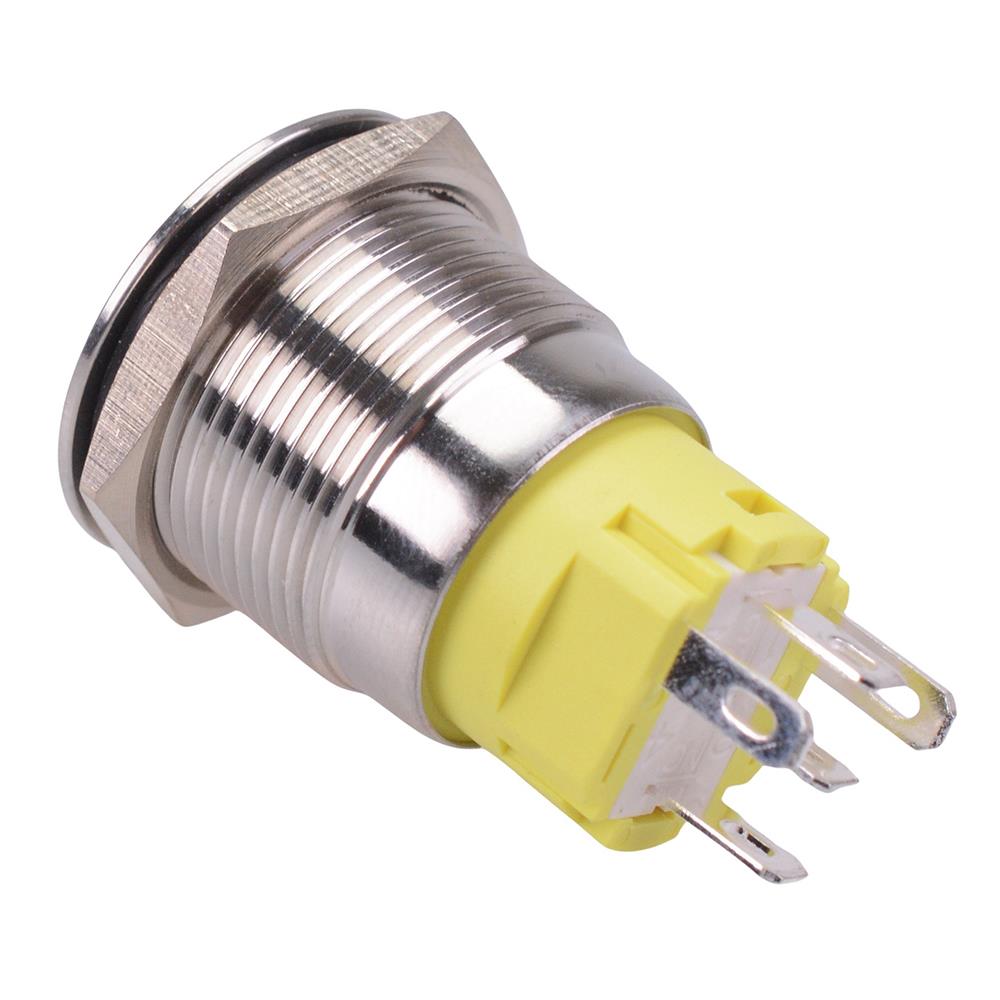

Yellow LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
Momentary vandal resistant 19mm push button switch featuring a yellow 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Momentary action Yellow LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.1 x 22mm (length x diameter)
