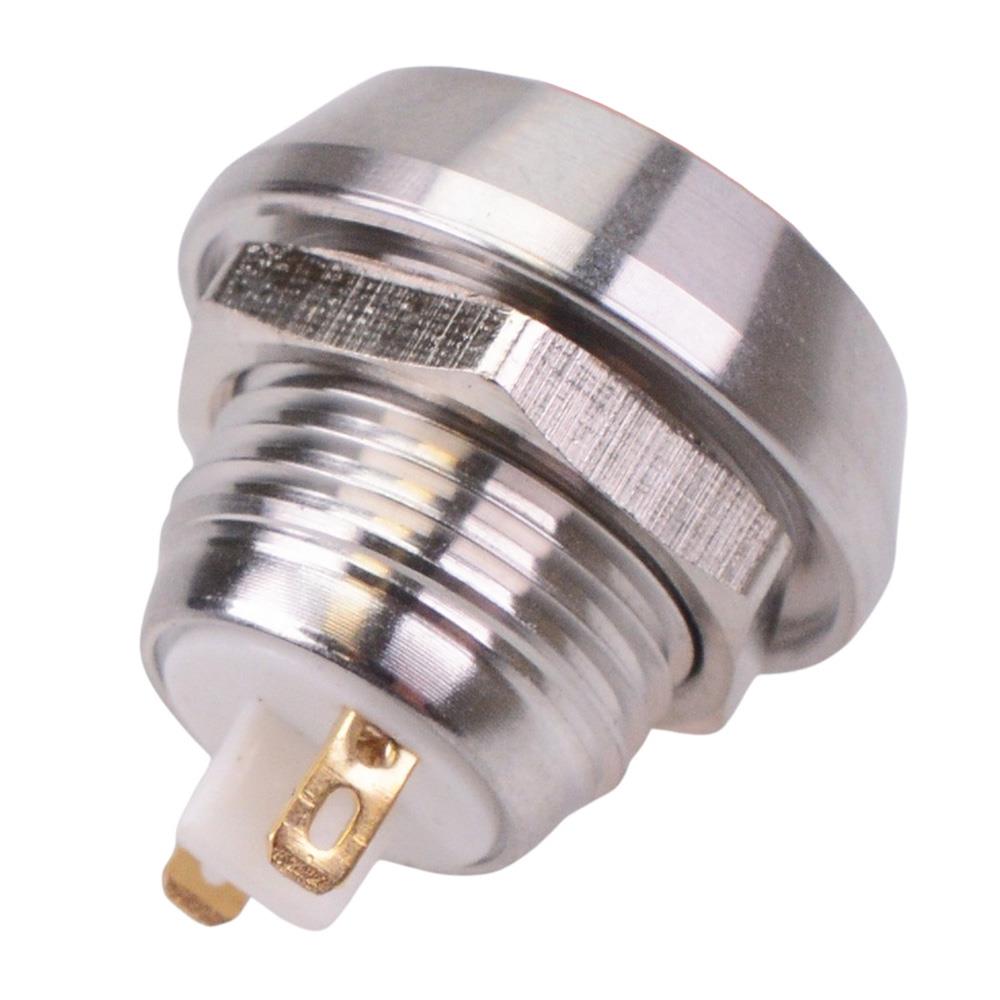

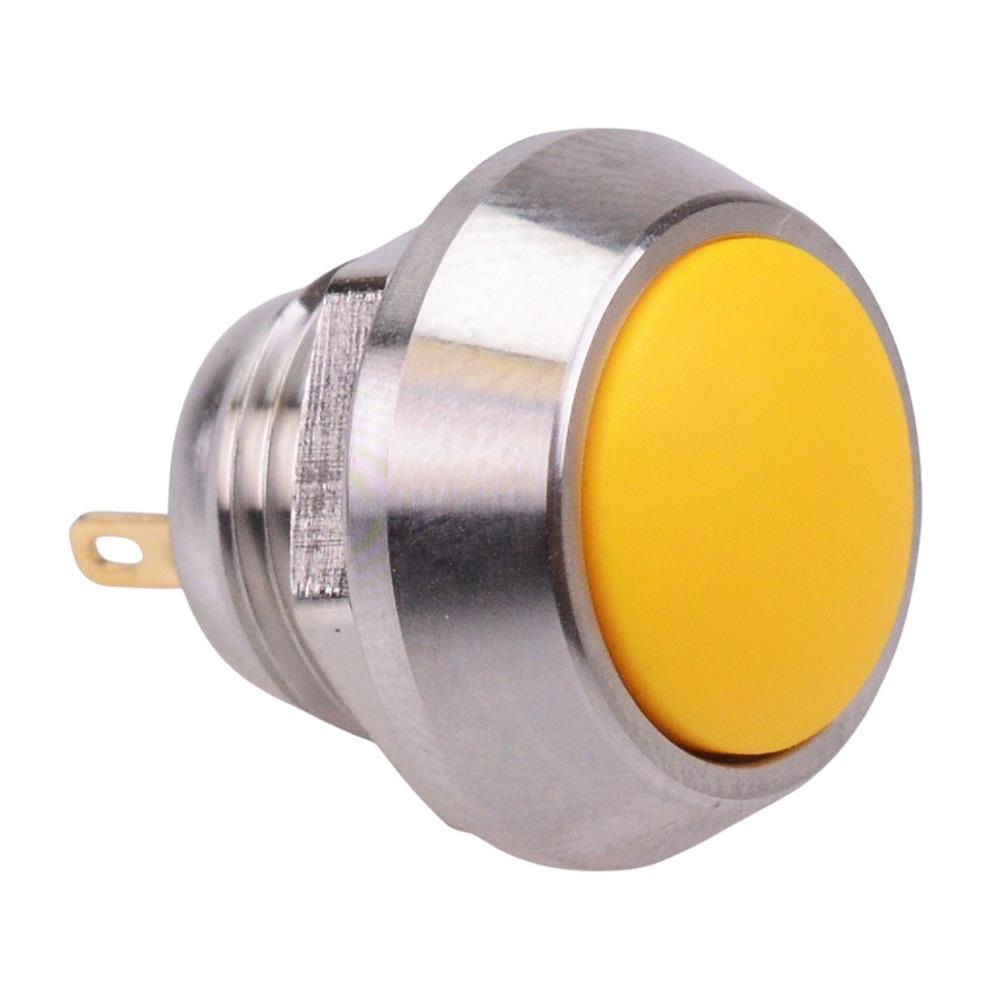

Yellow Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST

Yellow Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST
Yellow Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST
Yellow Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST
Yellow Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST
Yellow Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST
from
$3.98
Ex Tax: $3.98
10 or more $3.53
25 or more $3.34
50 or more $3.15
100 or more $2.98
  • Stock: In Stock
  • Model: SCJ013812
  • SKU: SCJ013812
Products Sold: 0
Product Views: 23
  • Specifications
Attributes List
ActuationMomentary
ColourYellow
Contact ConfigurationSPST
Contact Rating2A 48VDC
Current Rating2A
IlluminatedNo
Electrical Life200,000 Cycles
Illumination ColourNon Illuminated
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP65
Operating Force5N
Operating Temperature-20°C to +55°C
Panel Cut Out12mm
Panel Thickness6mm Max
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating48VDC
  • Description
Yellow vandal resistant push button switch featuring a round actuator and robust stainless steel body. The switch features an IP65 sealed construction and normally open SPST contacts suitable for a wide variety of applications.

  • Momentary Off-(On) action
  • SPST contacts
  • Stainless steel body
  • 12mm panel cut-out
  • 2A 48VDC rating
  • Solder terminals
  • 1,000,000 mechanical cycles
  • Dimensions: 19.3 x 17.5mm (height x diameter)
  • Yellow Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST

    Yellow Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST
