100W AC Servo Motor 0.32 Nm 3000 rpm
from
$416.54
Ex Tax: $416.54
- Stock: In Stock
- Model: SCJ009204
- SKU: SCJ009204
Products Sold: 0
Product Views: 1027
Ask a Question About This Product
- Description
100W AC Servo Motor 0.32 Nm 3000 rpm
Brief
100W AC brushless servo motor, 1-phase or 3-phase 220V AC voltage, 3000 rpm high speed, 0.32 Nm rated torque, peak torque of 0.64 Nm, 2,500 PPR incremental / absolute encoder attached. Low cost industrial servo motor.
Description
Brushless design 100 watt AC electric servo motor at affordable price, rated torque of 0.32 Nm, rated speed of 3000 rpm, IP65 for body, long life and high precision.
Basic Specification
- Model: SOCOJE40ST-M00130220
- Matched Drive Model: SCJ009204
- Rated Power: 100W
- Rated Voltage: Single phase or three phase 220V AC
- Rated Current: 0.6 A
- Rated Speed: 3000 rpm
- Rated Torque: 0.32 Nm
- Peak Torque: 0.64 Nm
- Square Flange Size: 40 mm
- Motor Length: 90mm
- Weight: 0.47 Kg
Technical Parameters
- Voltage Constant: 36.8 V/ 1000r/ min
- Torque Coefficient: 0.53 N.m/A
- Torque Inertia: 0.051 x 10-4 Kg.M2
- Line-Line Resistance: 34 Ω
- Line-Line Inductance: 40 mH
- Electrical Time-Constant: 1.18 ms
- Incremental Encoder Line: 2500 PPR
- Absolute Encoder: 17 bit, 23 bit (Tamagawa brand)
- Insulation Class: Class B
- Protection Class: IP65
Features
- Accuracy: SOCOJE AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
- Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
- Adaptability: SOCOJE heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
- Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
- Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
- Safety: SOCOJE AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

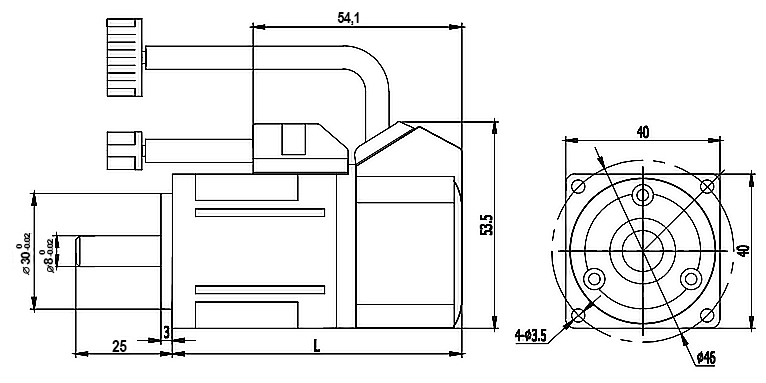

Dimension (unit: mm)
L (without brake): 90mm, L (with brake): 124mm

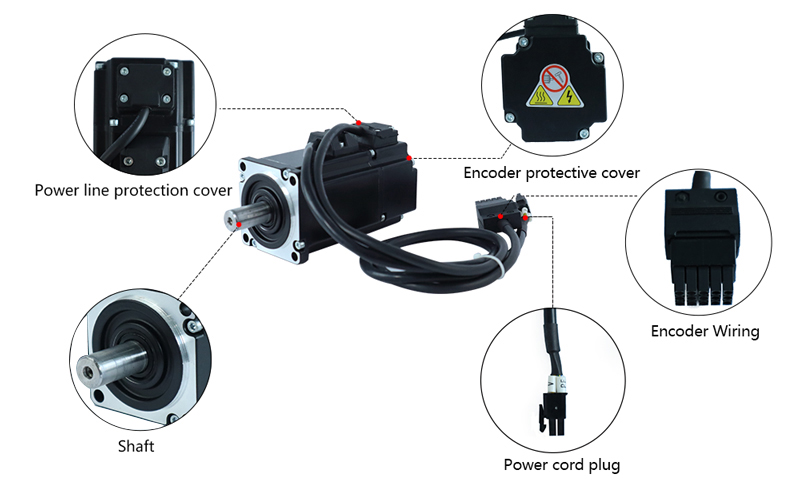

Details

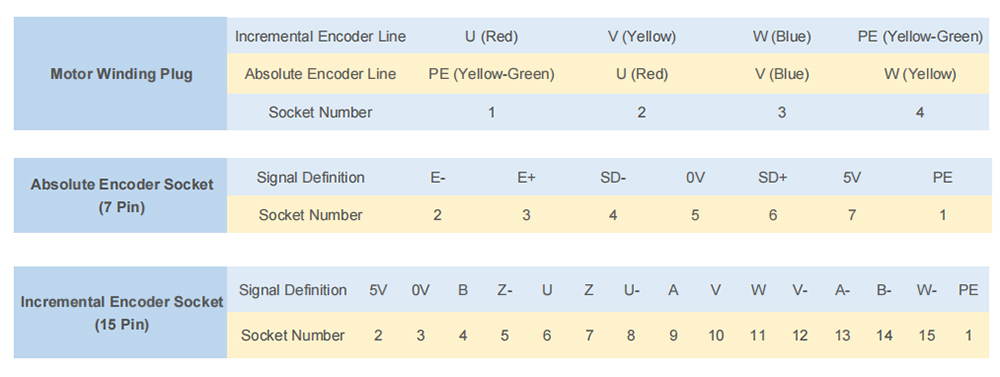

Winding and Encoder Connection
Tips: Oil and water resistant protection for servo motor
- Servo motor can be used in those places where the water or oil drop may invade, but it cannot fully resist the water or oil invasion. Therefore, servo motor should not be placed or used in water or oily environment.
- If the servo motor is connected with a reduction gear, it should be added oil seal before use to avoid oil in reduction gear entering servo motor.
- Do not soak the servo motor cable into oil or water.
